| Place of Origin: | china |
| Brand Name: | Howfond |
| Certification: | CE |
| Model Number: | HF-1500M |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD2300 |
| Packaging Details: | export wooden case |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 50 sets per month |
| Material: | Stainless Steel | Length: | 1500mm |
|---|---|---|---|
| Blower Powder: | Ø12, 0.25KW | Powder Supply Of Blower: | 220V 3P 60Hz Or 220V 1P 50Hz |
| Entrance /exit Height: | Max 350mm | Running Pressure: | Max 0.6Mpa |
| Weight: | 200kg | Entrance Width: | 130-210mm |
| Conveyor Speed: | 0-35m/minute | Power: | 0.25kw |
| Steam Consumption: | 24kg/hour |
N

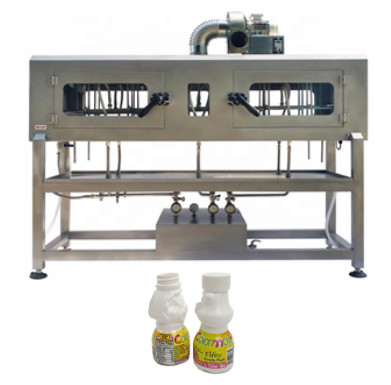

ew Style Bottle Label Shrink Sleeve Applicator for Food and Beverage Packing
1. Brief Introduction
Steam shrink tunnel is used for shrinking sleeve labels to label kinds of bottles: different and irregular round bottles, square bottles, flat bottles and women-shaped bottles. By shrinking PVC or PET sleeve labels to seal bottles caps /necks, cover bottles body even shrink wrap bottle bottom.
To get smooth shrink effect, we usually adjust the heights and positions of the 3 sections of steam spray tubes insides of tunnel. Bottles run on the conveyor, the shrink usually goes from down to top of bottles.

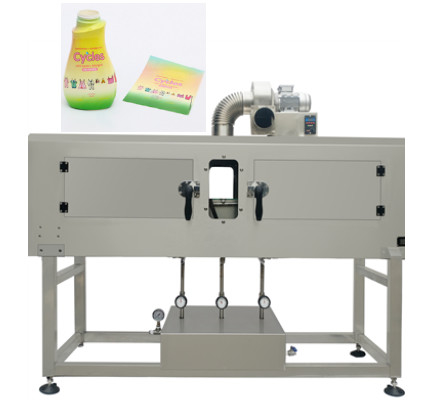

New Style Bottle Label Shrink Sleeve Applicator for Food and Beverage Packing
2.Advantage of Howfond’s Steam shrink tunnel.
The blower motor’s holder is made of SS304 stainless steel.
The elbow which connects blower motor is made of SS304 stainless steel.
The frame is made of SS201 or SS304 stainless steel.
The steam spray tubes are made of SS304 stainless steel.
The steam transmission tubes are made of SS304 stainless steel.
New Style Bottle Label Shrink Sleeve Applicator for Food and Beverage Packing
3. Parameters
| Item Models | HF-1200M | HF-1500M | HF-2000M | HF-2300M |
| Length of tunnel | 1.2meters | 1.5meters | 2.0meters | 2.3meters |
| Blower powder | Ø12, 0.25KW | Ø12, 0.25KW | Ø12, 0.25KW | Ø12, 0.25KW |
| Powder supply of blower | 220V 3P 60Hz or 220V 1P 50Hz | |||
| Entrance /exit height | Max 350mm | |||
| Entrance /exit width | 130~210mm (fixed size once confirmed) | |||
| Running pressure | Max 0.6Mpa | Max 0.6Mpa | Max 0.6Mpa | Max 0.6Mpa |
| Weight | 180kg | 200Kg | 220kg | 230kg |
| Steam consumption | 18kg/h | 21kg/h | 24kg/h | 24kg/h |
| Conveyor speed | 0~35m/minute | 0~35m/minute | 0~35m/minute | 0~35m/minute |
| Outline size (m) | L1.2*W0.4*H1.5 | L1.5*W0.4*H1.5 | L2.0*W0.4*H1.5 | L2.3*W0.4*H1.5 |
kunshan Howfond Machinery Co.,Ltd.
