| Place of Origin: | CHINA |
| Brand Name: | HF |
| Certification: | CE |
| Model Number: | HF-2000MH |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 2500/set FOBshanghai |
| Packaging Details: | export wooden case |
| Delivery Time: | 10-15 days |
| Supply Ability: | 50 sets/month |
| Length Of Tunnel: | 2m | Total Powder: | 12.5kw |
|---|---|---|---|
| Sleeves Shrink Films: | PVC, PET Or OPS | Heating Units: | 12pcs |
| Adjusted Temperature: | Max320℃ |

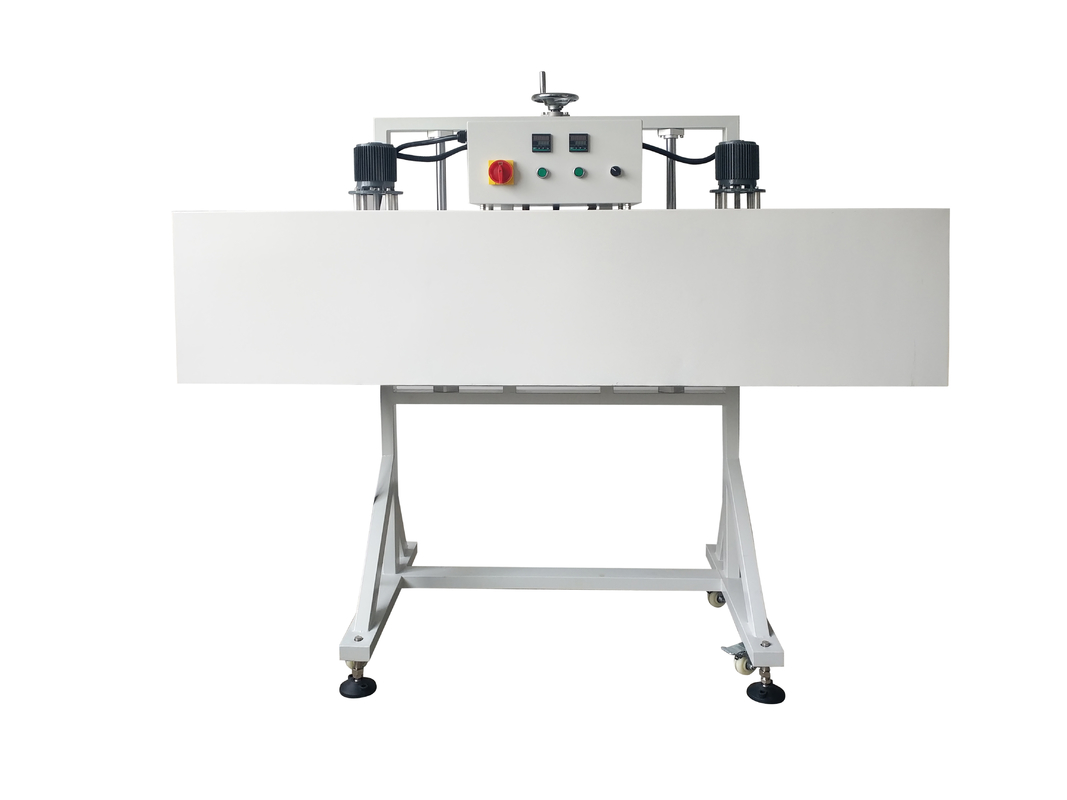

1. electric heat tunnel Brief Introduction
Electrical heating shrink tunnel is used for shrinking sleeve labels of small bottles’ body or sealing bottles’ caps/necks.
The sleeves shrink films can be PVC, PET or OPS. by electrical
2. Advantage of Howfond’s 2000MH electric heat tunnel
(1)Simple structure, good looking appearance.
(2)Adjusted height to match conveyor, easy installing.
(3)Easy moving without disassembly.

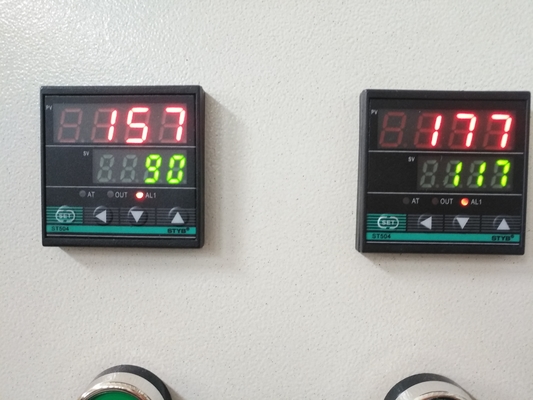

(4)Adjusted Temperature , Max320℃

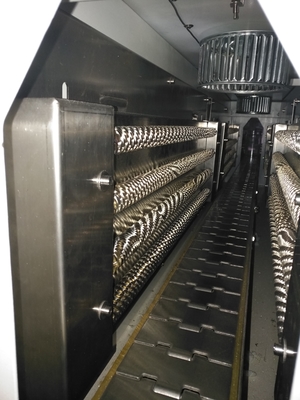

(5)Special heating pipes, Long service life..
(6) Intermittence heating, energy – saving.
(7)Safety protection.
3.electric heat tunnel parameters
| Item Models | HF-2000MH |
| Length of tunnel | 2.0 meters |
| Powder supply of blower | 220v 3P 50/60hz |
| Total Powder | 12.5kw |
| Heating units | 12Pieces |
| Entrance /exit height | 300mm |
| Entrance /exit width | 120mm |
| Net Weight | 150Kgs |
| Outline size (LWH ,mm) | 2000*500*(1400~1900) |

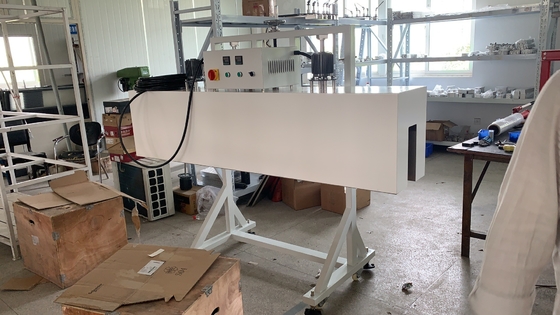

4.packing for the electric heat tunnel
contact information :
kunshan Howfond Machinery Co.,Ltd.
