| Place of Origin: | china |
| Brand Name: | Howfond |
| Certification: | CE |
| Model Number: | HF-1500M |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD2300 |
| Packaging Details: | export wooden case |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 30 sets per month |
| Material: | Stainless Steel | Length: | 1500mm |
|---|---|---|---|
| Blower Powder: | Ø12, 0.25KW | Powder Supply Of Blower: | 220V 3P 60Hz Or 220V 1P 50Hz |
| Entrance /exit Height: | Max 350mm | Running Pressure: | Max 0.6Mpa |
| Weight: | 200kg | Entrance Width: | 130-210mm |
| Conveyor Speed: | 0-35m/minute | Power: | 0.25kw |
| Steam Consumption: | 24kg/hour |

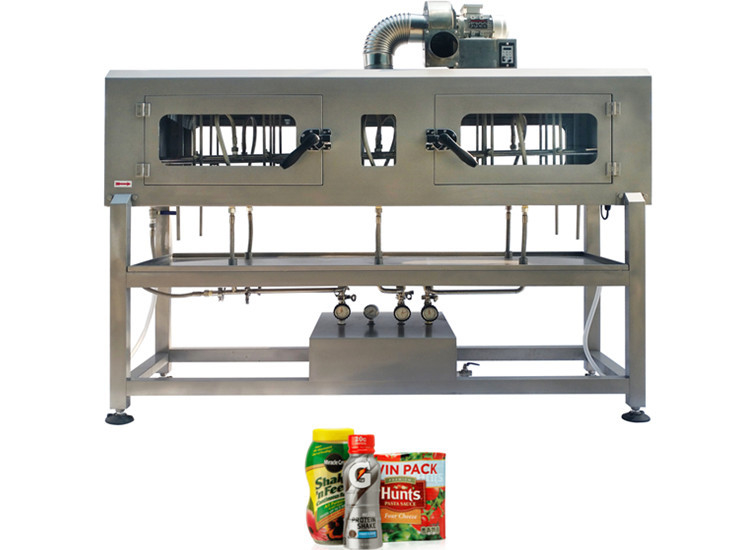

Bottle Label Steam Shrink Tunnel For Sleeve Label Machine
1. Brief Introduction
Steam shrink tunnel is used for shrinking sleeve labels to label kinds of bottles: different and irregular round bottles, square bottles, flat bottles and women-shaped bottles. By shrinking PVC or PET sleeve labels to seal bottles caps /necks, cover bottles body even shrink wrap bottle bottom.
To get smooth shrink effect, we usually adjust the heights and positions of the 3 sections of steam spray tubes insides of tunnel. Bottles run on the conveyor, the shrink usually goes from down to top of bottles.
Bottle Label Steam Shrink Tunnel For Sleeve Label Machine
2.Advantage of Howfond’s Steam shrink tunnel.
Bottle Label Steam Shrink Tunnel For Sleeve Label Machine
3. Parameters
| Item Models | HF-1200M | HF-1500M | HF-2000M | HF-2300M |
| Length of tunnel | 1.2meters | 1.5meters | 2.0meters | 2.3meters |
| Blower powder | Ø12, 0.25KW | Ø12, 0.25KW | Ø12, 0.25KW | Ø12, 0.25KW |
| Powder supply of blower | 220V 3P 60Hz or 220V 1P 50Hz | |||
| Entrance /exit height | Max 350mm | |||
| Entrance /exit width | 130~210mm (fixed size once confirmed) | |||
| Running pressure | Max 0.6Mpa | Max 0.6Mpa | Max 0.6Mpa | Max 0.6Mpa |
| Weight | 180kg | 200Kg | 220kg | 230kg |
| Steam consumption | 18kg/h | 21kg/h | 24kg/h | 24kg/h |
| Conveyor speed | 0~35m/minute | 0~35m/minute | 0~35m/minute | 0~35m/minute |
| Outline size (m) | L1.2*W0.4*H1.5 | L1.5*W0.4*H1.5 | L2.0*W0.4*H1.5 | L2.3*W0.4*H1.5 |
