| Place of Origin: | china |
| Brand Name: | Howfond |
| Certification: | CE |
| Model Number: | HF-1500M |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD2300 |
| Packaging Details: | export wooden case |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 500 sets per month |
| Material: | Stainless Steel | Length: | 1500mm |
|---|---|---|---|
| Blower Powder: | Ø12, 0.25KW | Powder Supply Of Blower: | 220V 3P 60Hz Or 220V 1P 50Hz |
| Entrance /exit Height: | Max 350mm | Running Pressure: | Max 0.6Mpa |
| Weight: | 200kg |
Keywords
steam shrink tunnel with cooling, water cooling steam tunnel, anti-deformation steam machine, thin bottle steam tunnel

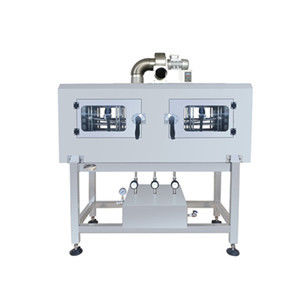

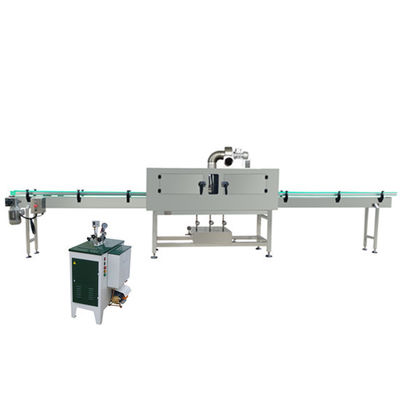

Steam Shrink Tunnel with Water Cooling System Description:
This steam shrink tunnel is equipped with water cooling system to prevent bottle deformation after heating. It is very suitable for thin-walled plastic bottles, soft containers and heat-sensitive products, ensuring perfect shape and high-quality shrink finish.
2.Advantage of Howfond’s easy operation steam shrink tunnel
(1)Full body of tunnel is made of SS304 stainless steel.
(2)Inside of tunnel , flexible tubes are made of SS316,
(3)Round steam jet pipes save 30% steam at least.
(4)No rusting because of Electropolishing for steam jet pipes and flexible tubes.
(5)Blower motor for steam exhausting is varied and adjustable.
(6)Needle valve,precise steam consumption controlling.
(7)SICION tube to ground for water out.
3. stable steam heat tunnel Parameters :
| Item Models | HF-1200M | HF-1500M | HF-2000M | HF-2300M |
| Length of tunnel | 1.2meters | 1.5meters | 2.0meters | 2.3meters |
| Blower powder | Ø12, 0.25KW | Ø12, 0.25KW | Ø12, 0.25KW | Ø12, 0.25KW |
| Powder supply of blower | 220V 3P 60Hz or 220V 1P 50Hz | |||
| Entrance /exit height | Max 350mm | |||
| Entrance /exit width | 130~210mm (fixed size once confirmed) | |||
| Running pressure | Max 0.6Mpa | Max 0.6Mpa | Max 0.6Mpa | Max 0.6Mpa |
| Weight | 180kg | 200Kg | 220kg | 230kg |
| Steam consumption | 18kg/h | 21kg/h | 24kg/h | 24kg/h |
| Conveyor speed | 0~35m/minute | 0~35m/minute | 0~35m/minute | 0~35m/minute |
| Outline size (m) | L1.2*W0.4*H1.5 | L1.5*W0.4*H1.5 | L2.0*W0.4*H1.5 | L2.3*W0.4*H1.5 |
