| Place of Origin: | china |
| Brand Name: | Howfond |
| Certification: | CE |
| Model Number: | HF-3000M |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD3700 |
| Packaging Details: | export wooden case |
| Delivery Time: | 10 days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 100 sets per month |
| Material: | Stainless Steel | Length: | 3000mm |
|---|---|---|---|
| Blower Powder: | Ø12, 0.25KW | Powder Supply Of Blower: | 220V 3P 60Hz Or 220V 1P 50Hz |
| Entrance /exit Height: | Max 350mm | Running Pressure: | Max 0.6Mpa |
| Weight: | 200kg |

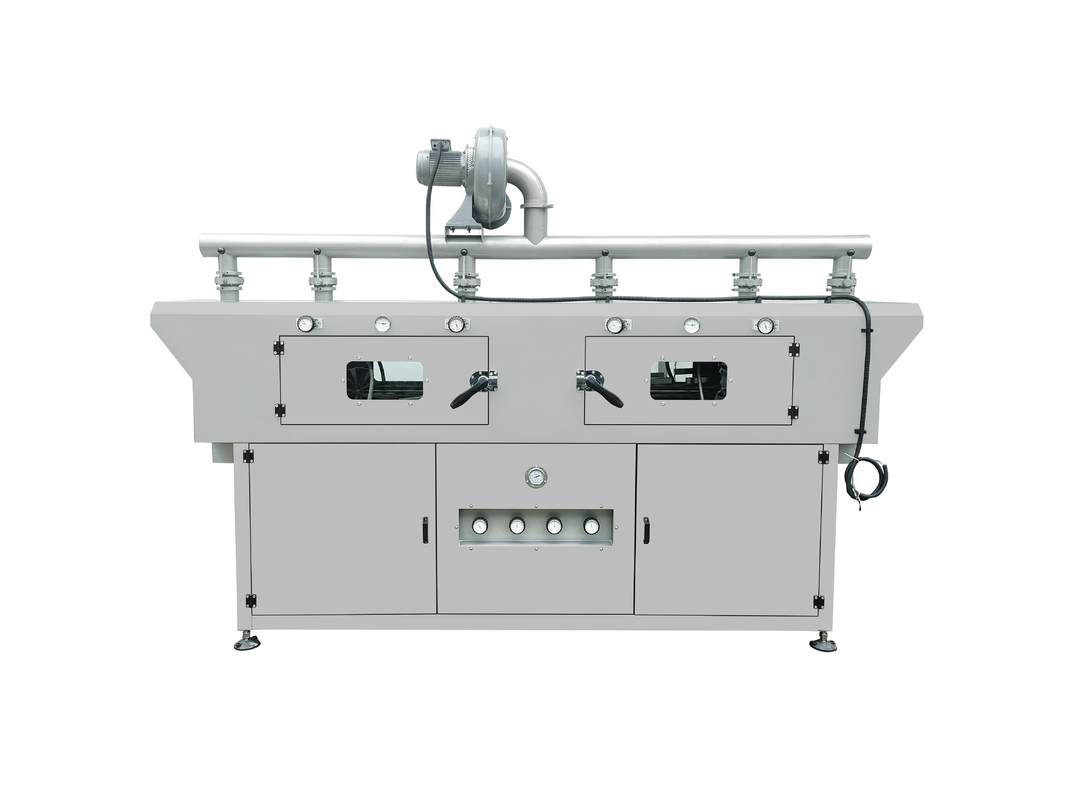

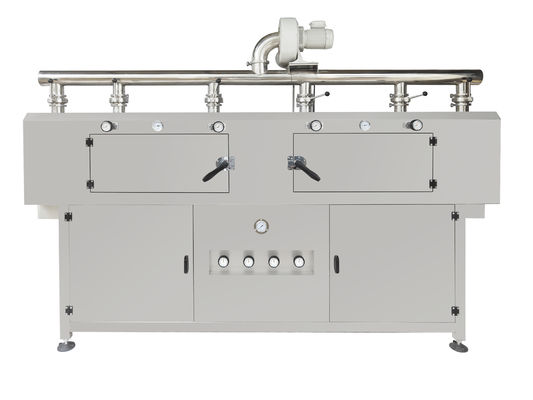

1. customized steam shrink tunnel HF-3000M Brief Introduction :
This food grade steam shrink tunnel complies with food hygiene standards. It is safe and reliable for food bottles, cans, pouches and other food packages. The smooth surface and detachable structure make cleaning and maintenance very convenient, widely used in food processing factories.
Bottle Labeling Steam Shrink Tunnel Details :
(1) Superb shrink finish with filled or cold bottles, or high speed shrinking.
(2) Windows are installed inside of tunnel’s body with water leaking holes, no water getting out.
(3) Steam tubes are made of SS316
(4) Insulation layer makes Low running cost, 40-50kg steam/hour, 0.4~0.6Mpa.
(5) 6 shrink sections, total 12 pcs of adjustable steam spray tubes are adjustable
for complex shapes of bottles.
Available shrink area 2.6meters, the rest area is used to avoid steam out
from two ends of Tunnel.
(6) Exhausting blower is on the top of tunnel, exit upwards. A water tray under motor, no any water
dropping outside.
(7) Precise steam precise control by 6 digital handles for 6 areas, saving steam.
(8) temperatures inside of tunnel is showed by two thermometers, and one Pressure gauge.
(9) Full body of tunnel is made of SS304 stainless steel
(10) Strong and easy 0perational handles on windows
.
(11) steam tubes are hided inside, simple and generous, and avoid hurting by hot steam.
(12) water outlet/water collection tray to avoid getting ground wet.
(13) self-draining
cost effective steam shrink tunnel packing .
