| Place of Origin: | CHINA |
| Brand Name: | howfond |
| Certification: | CE |
| Model Number: | HFH-250M |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD30000/set FOB shanghai |
| Packaging Details: | export wooden case |
| Delivery Time: | 30 working days |
| Supply Ability: | 5 sets/month |
| Brand: | HOWFOND | Size: | 210x65x180cm |
|---|---|---|---|
| Sleeve Material: | Pvc Pet Ops | Driven Type: | Electric |
| Automatic Grade: | Automatic | Container Length: | Max 180mm |
| Labeling Speed: | 60-250pcs/min | Container Material: | Glass Metal Plastic |
| Core Components: | PLC. Motor | Container Diameter: | 12-40mm |
Horizontal Shrink Sleeve Label Applicator Overview ;
Horizontal Shrink Sleeve Label Applicator is a packaging process where pre-cut shrinkable film sleeves are applied horizontally (from the side) onto containers. The machine wraps the sleeve around the product, which then passes through a heat tunnel to shrink the film tightly, creating a seamless 360° label.
Precision side-loading of pre-cut sleeves.
Horizontal Shrink Sleeve Labeling System: Core Advantages
1. Advanced Container Stabilization Technology
• Securely processes non-freestanding containers (vials, ampoules, flexible tubes) with <5° tilt tolerance
• Patented anti-tilt gripper system prevents product oscillation during high-speed operation (18,000 CPH)
2. Sub-millimeter Precision Engineering
• ±0.2mm sleeve positioning accuracy through servo-driven micro-adjustment
• Maintains registration on:
Conical/tapered geometries (30°-85° incline)
Ultra-lightweight products (≥2g)
Textured surfaces (Ra 3.2-12.5μm)
3. Space-optimized Modular Design
• 40% less vertical clearance than conventional vertical labelers
• 800×800mm base footprint enables integration in constrained production lines
4. Intelligent Format Flexibility
Parameter Range Changeover Time
Container Diameter 10-150mm ≤15 minutes
Product Length 30-300mm Tool-free
Label Circumference 50-500mm <5 adju
Key Advantages Horizontal Shrink Sleeve Label Applicator vs. Vertical Labelers
| Feature | Horizontal Shrink Sleeve Label Applicator | Vertical Labelers |
|---|---|---|
| Container Compatibility | Irregular shapes, ≤50mm diameter | Standard cylindrical forms |
| Decoration Coverage | Full-body 360° branding | Limited front/back panels |
| Production Flexibility | Quick changeover for short runs | Optimized for high-volume |
Horizontal Shrink Sleeve Label Applicator Photos and Drawing for Reference ;
Horizontal Shrink Sleeve Label Applicator Parameters :
| Voltage | 220V/380V(Can be customized) |
| driven type | electric |
| automatic grade | automatic |
| core components | PLC motor |
| labeling thinkness | 0.05-0.07mm |
| usage | thin and long product |
| label material | pvc pet ops etc |
| certification | ce |
| sleeving speed | 50-120bpm |
| container length | max 180mm |

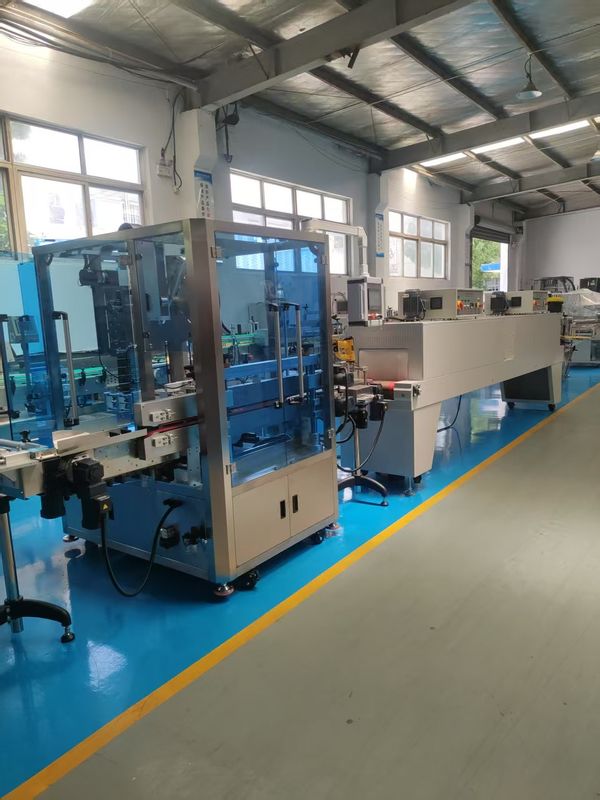

Horizontal Shrink Sleeve Label Applicator with heat tunnel:
Horizontal Shrink Sleeve Label Applicator for the products below :
welcome to contact us for Horizontal Shrink Sleeve Label Applicator ;
kunshan Howfond Machinery Co.,Ltd.
