| Place of Origin: | CHINA |
| Brand Name: | HF |
| Certification: | CE |
| Model Number: | HF-250M |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD11000-USD13000 |
| Packaging Details: | plastic film with PET belt in export wooden case |
| Delivery Time: | 20-35 days since get payment |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 20 sets per month |
| After-sales Service: | Engineer Can Adjust The Machine At Buyer's Factory | Control Language: | English |
|---|---|---|---|
| Warranty: | 1 Year After Shipping | Speed: | Max400bpm |
| Bottle Material: | Plastic/glass/metal | Eligibility Pecent: | ≥99.5% |
| Label Material: | PET PVC PE | Label Thickness: | 0.03-0.13mm |
| Bottle: | Max320mm |
Factory introduction :
1) Located in shanghai which is near to shanghai seaport and internatiaonl Pudong airport
2)Machine in stock , prompt delivery
3)Our own factory can provide competitive price
4)experienced engineer who is good at English can adjust the machine at buyer's factory
5)Improved the machine according to customer's requirement for better operation

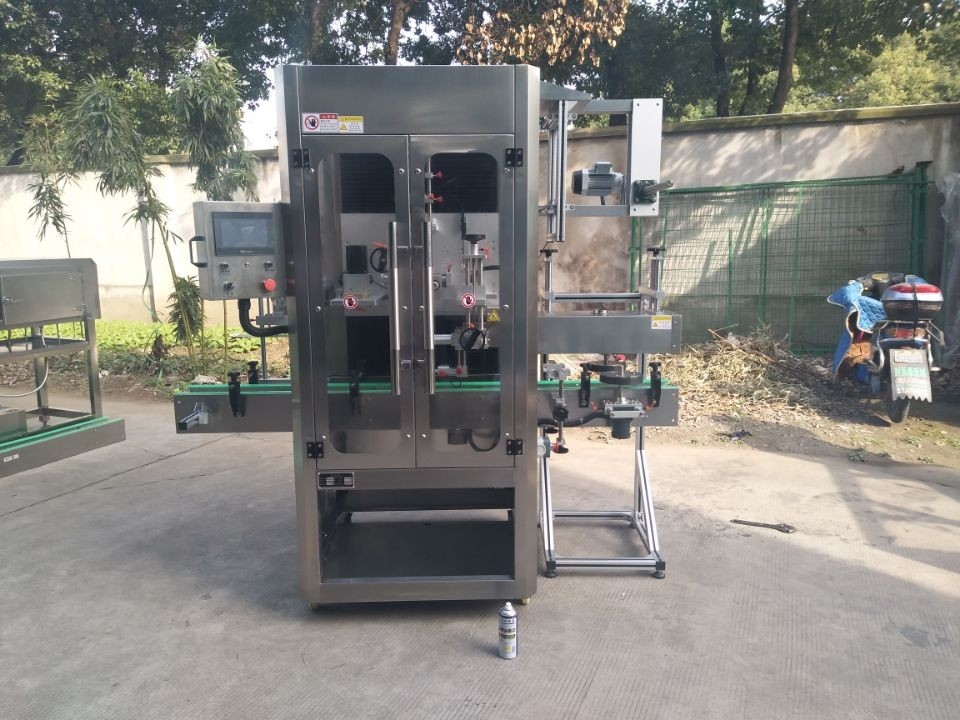

Sleeve Labeller Introduction :
HF-250M includes conveyor and made in stainless steel ss304 construction
It is designed for full body, neck and cap banding applications.
This unit is controlled by a Panasonic servo motor for fast accurate label lengths.
Omron PLC with color touch screen in English or other kind of language .
1) frame material SS304
2) Servo system drives the machine.
3) bottle can be around, square flat, curved cup-shaped
4) Easy to change mandrels and separating worms .
5) Unique cutter design, cut mark smoother, quick and easy blade replacement
6) No bottles no sleeve inserting.
7) Mature program makes machine working steadily.
8) Innovative machine structure design ensures excellent durability and unmatched structural quality.
Machine details images :

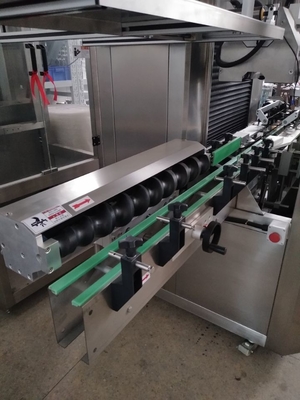

bottle seperating worms

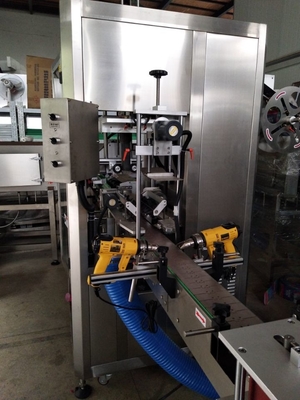

pre-heating device

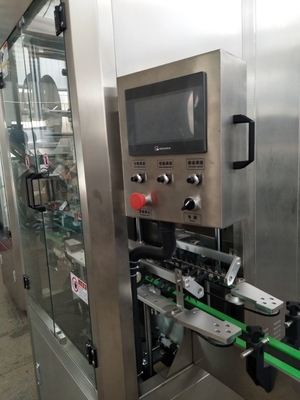

touch screen

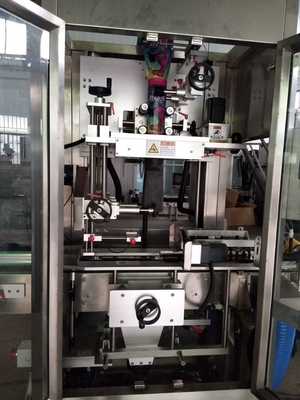

bottle labeling part
This device is used to make sure all sleeves to be put at suitable /right positions
after sleeves inserting by sleeves applicator /labeling machine.
The height of the device is easy to adjust to suit different bottles
Small total power, 0.25kw
Sleeve Labeller parameters :
| machine | capacity | 250bpm |
| szte | 200*85*200cm | |
| weight | 600kg | |
| power supply | AC3 phase 220v/380v | |
| eligibility percent | ≥99.5% | |
| total power | 1.5kw | |
| label | material | PVC PET OPS |
| thickness | 0.03-0.13MM | |
| labels height | 4-20CM | |
| flat width | MAX21CM | |
| inner Dia of label roll | 7.6CM | |
| bottle | height | MAX32CM |
| dia | 2.8-12.5CM | |
| material | GLASS METAL PLASTIC | |
| shapes | Round flat square curved cup-shaped |
Packing details :
| size | 2.1*1.25*2.1m |
| gross weight | 630kgs |
| packing details | plastic film PET belt export wooden case |
High speed sleeve labeller :

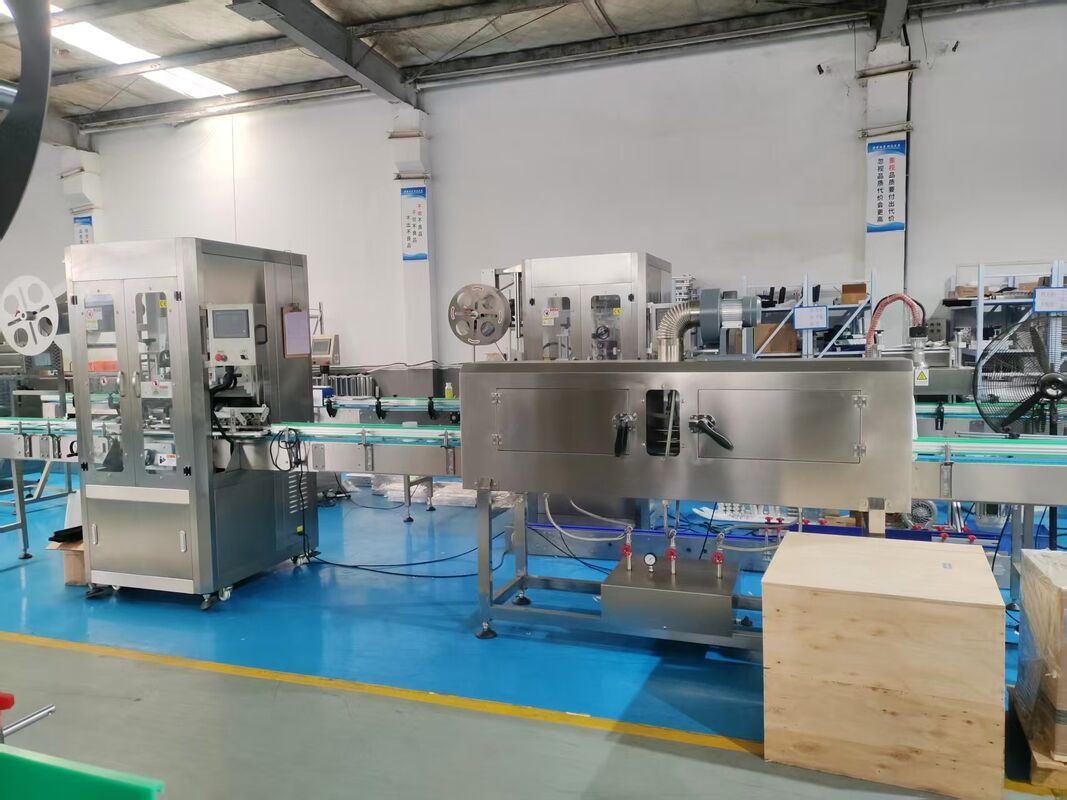

welcome to visit our factory :
