| Place of Origin: | china |
| Brand Name: | HOWFOND |
| Certification: | CE |
| Model Number: | DB-150D |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD2500 |
| Packaging Details: | export palletized packing wooden case |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 50 sets/month |
| Material: | 304 Stainless Steel | Certificate: | CE |
|---|---|---|---|
| Entrance Width To Suit Conveyor: | 100mm Or Customized | Blowing Knifes: | 4 Pieces |
| Length Of Blowing Knifes: | 0.5m~0.6m | Blowing Motor: | 2 Set 5.5kw |
| Total Powder: | 11KW | Powder Supply: | AC 3Phase :220～480V |
| Size: | 1.5m*0.72m*1.7m |

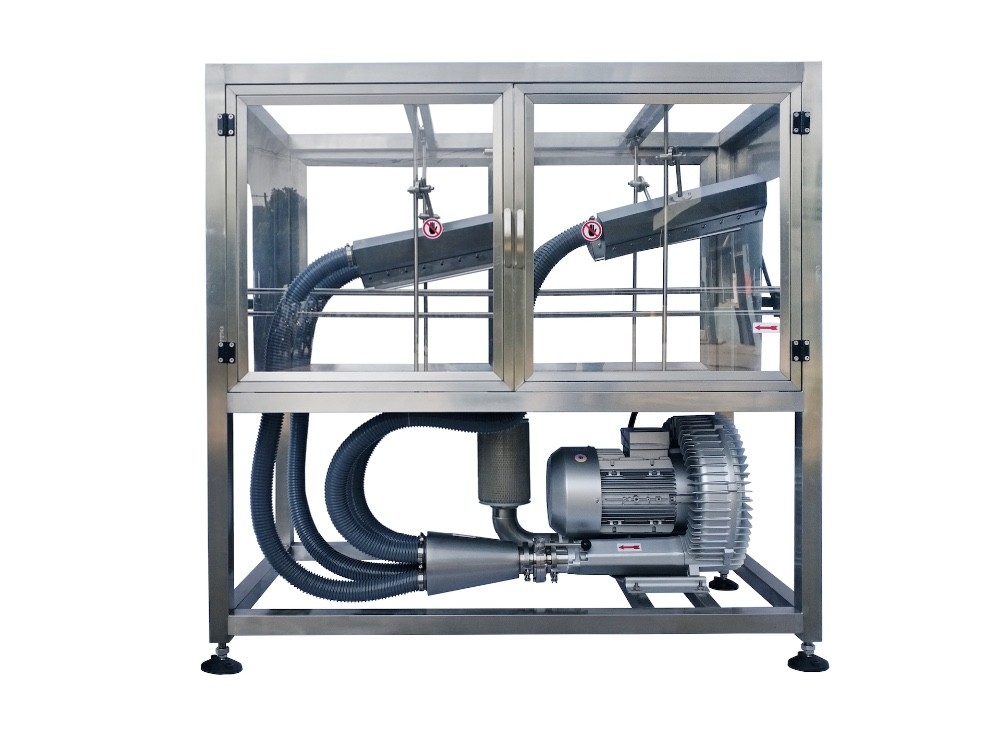

1. Air Knife Dryer Machine Introduction :
Air knife dryer is used to remove water after sleeves shrinking by steam tunnel
for easy packing or inkjet codes printing on bottles.
The dryer can remove most of the water on the surface of bottles, but it can not remove 100%.
BD150 Blowing Dryer have following Features.
2.Characteristics of air knife dryer :

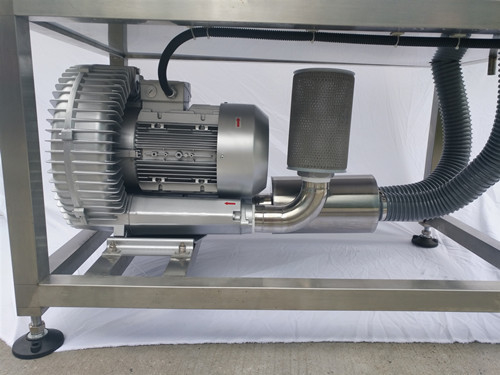

(1) High–performance 5.5 kw blower motor with double fan, much more efficient
(2) Adjustable air volume blowing.
(3) Overload protection, safe.
(4) Simple and clean appearance

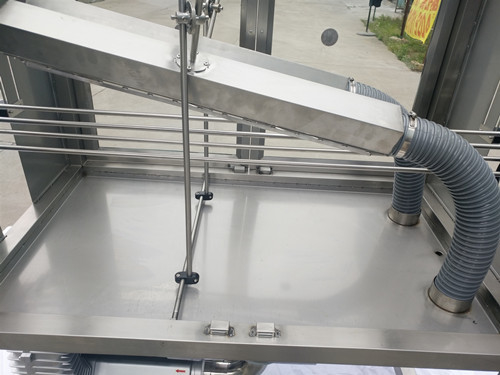

(5) 4 blowing knifes, total 0.5*4=2meters blowing length
(6) Inlet air protection to prevent debris
3.Blowing Dryer Machine Main Parameters
|
Machine |
Machine model | BD150 |
| Powder supply | AC 3Phase :220V/380V/440V | |
| Total powder | 5.5~7.5KW | |
| Entrance width to suit conveyor | 100mm or customized | |
| Blowing knifes | 4 Pieces | |
| Length of Blowing knifes | 0.5m | |
| Blowing motor | 1 set/5.5kw~7.5kw | |
| Overload protection | YES | |
| Frame material | SS304 steel | |
| Weight | 250Kgs | |
| Size L*W*H | 1.5m*0.85m*1.7m |
4.Packing details for air knife dryer :
5. other kinds of air blowing dryers for your choice :
