| Place of Origin: | china |
| Brand Name: | HOWFOND |
| Certification: | CE |
| Model Number: | DB-100s |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD2500 |
| Packaging Details: | export wooden packing |
| Delivery Time: | 10-15days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 50 sets/month |
| Air Tubes: | 15~20 Pieces | Certificate: | CE |
|---|---|---|---|
| Powder Supply: | AC 3Phase :220V~480V | Entrance Width To Suit Conveyor: | 100mm Or Customized |
| Length Of Main Tube: | 0.7~0.8m | Blowing Motor: | 1 Set/5.5kw |
| Size: | 1.1m*0.72m*1.7m |

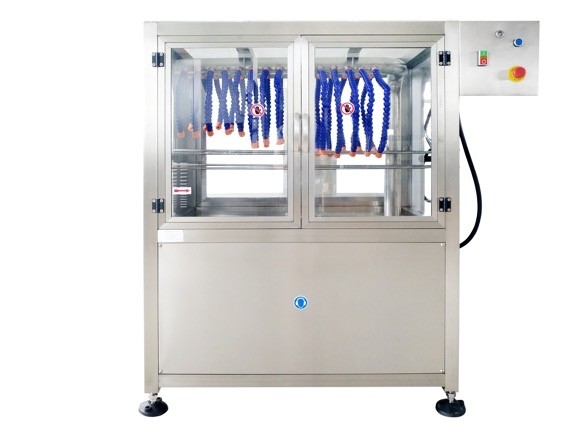

Spider blowing dryer Introduction :
BD-100S Blowing Dryer is made as CE standard.
It is used to remove water after sleeves shrinking by steam tunnel for easy packing or inkjet codes printing on bottles.
The dryer can remove 80~90% water on the surface of bottles.
BD-100S Blowing Dryer have following Features:
1 . Made as CE standard,

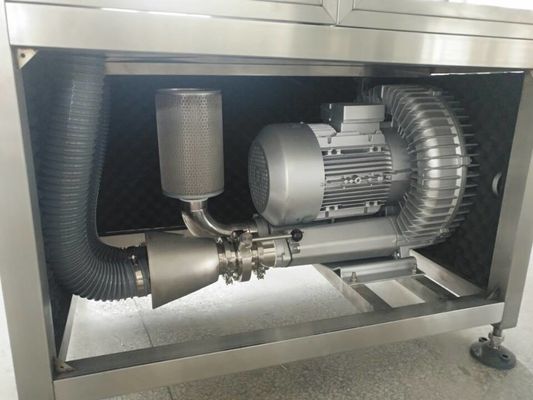

(1) High–performance 5.5 kw blower.
(2) Fame material: SUS 304 stainless steel.
(3) Overload protection, for safety.
(4) Simple and clean appearance

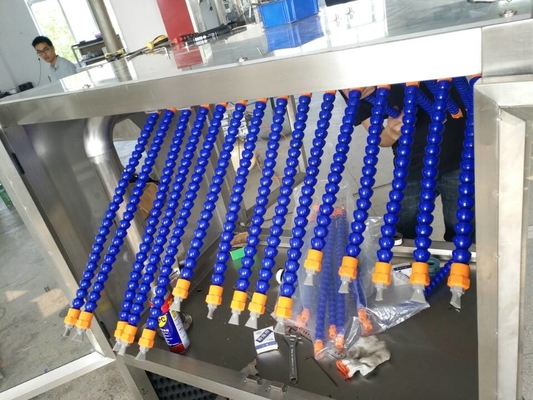

(5) 15 pieces tubes at different length, one main steel tube with 70~80cm
(6) Inlet air protection to prevent debris
(7) wind dosage is adjustable.

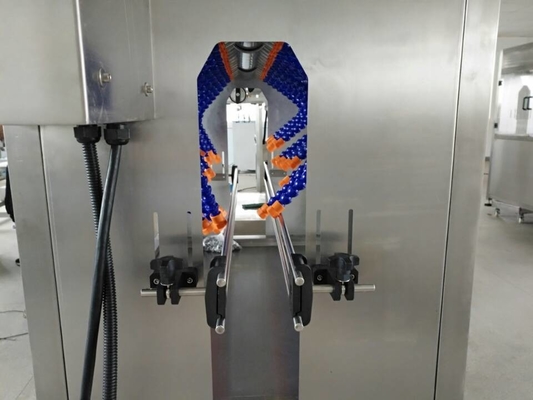

(8) wind knife position is adjustable at all directions.
(9) there is 1.1m rails bars inside.
(10) water collection tray has an angle, so that water leak to the ground.
(11) Noise shelter
2. Blowing Dryer Machine For Sleeve Labeling Machine
| Machine model | BD-100s |
| Powder supply | AC 3Phase :220V/380V/440V | |
| Total powder | 5.5KW | |
| Entrance width to suit conveyor | 100mm or customized | |
| Length of Blowing knifes | 0.5m | |
| Blowing motor | 1 set/5.5kw~7.5kw | |
| Overload protection | YES | |
| Frame material | SS304 steel | |
| Weight | 250Kgs | |
| Size L*W*H | 1.1m*0.85m*1.7m |

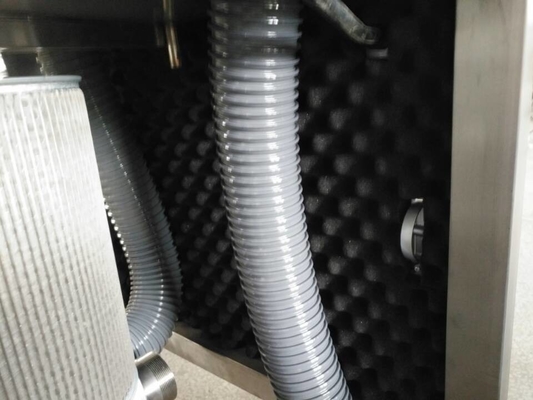

3. Noise shelter
4.Wooden box sizes
| Models | Blower dryer |
| Packing wooden case (L×W×H) m | 1.6×0.9×1.75m |
| Volume (m3 ) | 2.6 |
| Weight(kg) wooden box included | 250kg |
