| Place of Origin: | china |
| Brand Name: | HOWFOND |
| Certification: | CE |
| Model Number: | HF-500HL |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD15000 |
| Packaging Details: | export packing |
| Delivery Time: | 10-20days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 50 sets/month |
| Material: | 304 Stainless Steel | Label Material: | PVC PET OPS |
|---|---|---|---|
| Speed: | 500 Bottles Per Minute | Bottle Height: | Max320mm |
| Certificate: | CE | Total Powder: | 3.5KW |
| Delivery Time: | 25 Days | Packing: | Export Packing |
| Bottle: | Ø28- Ø125mm | Inner Dia. Of Labels Roll: | 76mm Or 127mm |

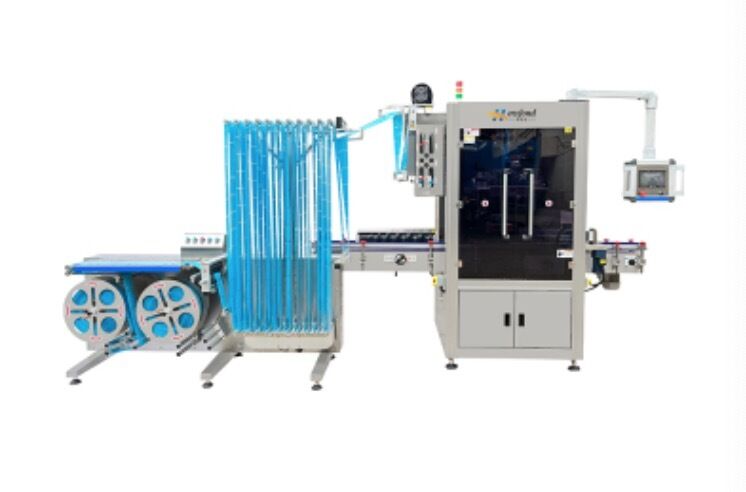

High‑Speed Automatic Sleeve Applicator Machine HF‑500HL
Our HF‑500HL automatic sleeve applicator machine is a high‑performance full‑body shrink sleeve labeling system engineered for high‑volume production lines. It is capable of applying heat‑shrink sleeves onto various containers, including plastic bottles, glass jars, aluminum tubes and composite cans.
Built with full stainless‑steel frame, this sleeve applicator ensures stable long‑time running in food, beverage, cosmetic and daily‑chemical production environments. It supports quick format change‑over for different bottle diameters and sleeve sizes, greatly reducing your model‑switching downtime.
Equipped with precise servo driving system, the machine delivers accurate label positioning for neat, wrinkle‑free sleeve application. Compatible with PVC, PET, OPS shrink sleeve materials. It can work perfectly together with our steam shrink tunnel or hot air shrink oven to complete the full labeling process.
To suit kinds of bottles and different sleeve position, there are some differences with each set machine, such as bottles separating device, sleeve reel in ground or not, brushes/sleeve patting device…
Electrical cables/wires in the cabinet on the back of machine, are assembled by CE standard for EUROPE market.
Advantage of HF-500H sleeve labeling machine
(1) High speed of servo system, Machine works Stable and reliable.
(2) Elegant appearance, compact structure. Easy operation.
(3) Simple mandrels holder, easy parts changing process.
(4) Special cutter design, smoother cutting, quick and easy blades replacement.
(5) Sleeve inserting only when bottles come, no sleeves wasting.
(6) Skilled program in PLC makes machines working fluent.
(7) High eligibility of sleeves inserting.
(8) The frame is made of 304 stainless steel, no rusting problem.
Automatic Shrink Sleeve Labeler Machine Parameters :
| Machine | Machine model | HF-500H |
| Capacity | 500bpm (sleeve height 5~10cm) | |
| Size L*W*H | 2800*850*2000mm | |
| weight | 800Kgs | |
| Powder supply | AC3-Phases 220V or AC3-Phases 380V | |
| Eligibility percent | ≥99.5% | |
| Total powder | 3.5KW | |
| Shrinkable labels | Materials | PVC,PET,OPS |
| Thickness | 0.035-0.05mm | |
| Labels height | 40~300mm | |
| Flat width | Max210mm | |
| Inner Dia. Of Labels roll | 76mm or 127mm | |
| Bottles to pack | Height | Max320mm |
| Diameter | Ø28- Ø125mm | |
| Material | Glass,Metal ,Plastic | |
| Shapes | Round, square, flat , curved cup-shaped bottles |
