| Place of Origin: | china |
| Brand Name: | HOWFOND |
| Certification: | CE |
| Model Number: | HF-250M |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD9000 |
| Packaging Details: | export packing |
| Delivery Time: | 20-30days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 50 sets/month |
| Material: | 304 Stainless Steel | Label Material: | PVC PET OPS |
|---|---|---|---|
| Speed: | 250 Bottles Per Minute | Sleeve Height: | 5-10cm |
| Certificate: | CE | Voltage: | 220v/380v |
| Delivery Time: | 25 Days | Packing: | Export Packing |
| Size: | 2000*850*2000mm | Weight: | 600kg |

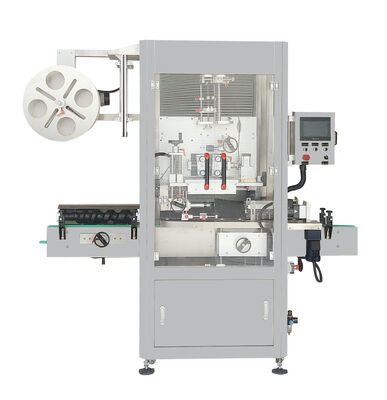

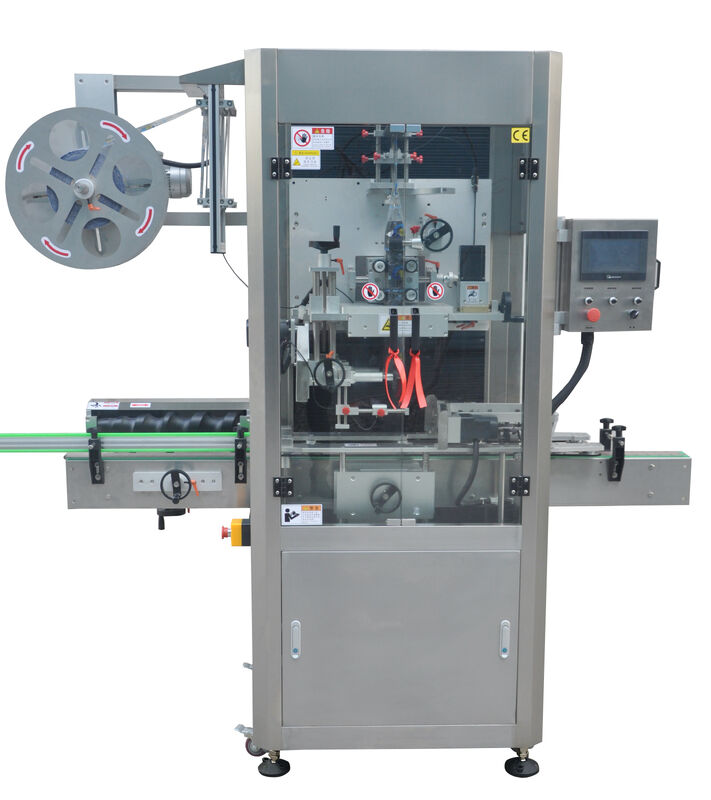

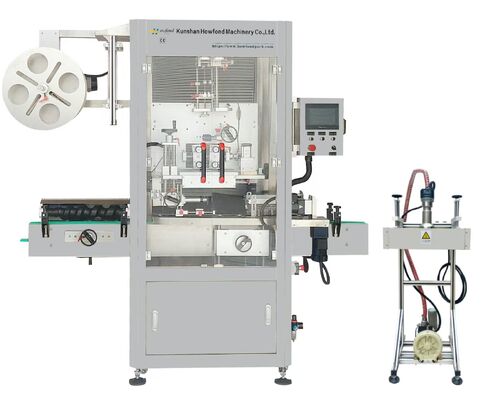

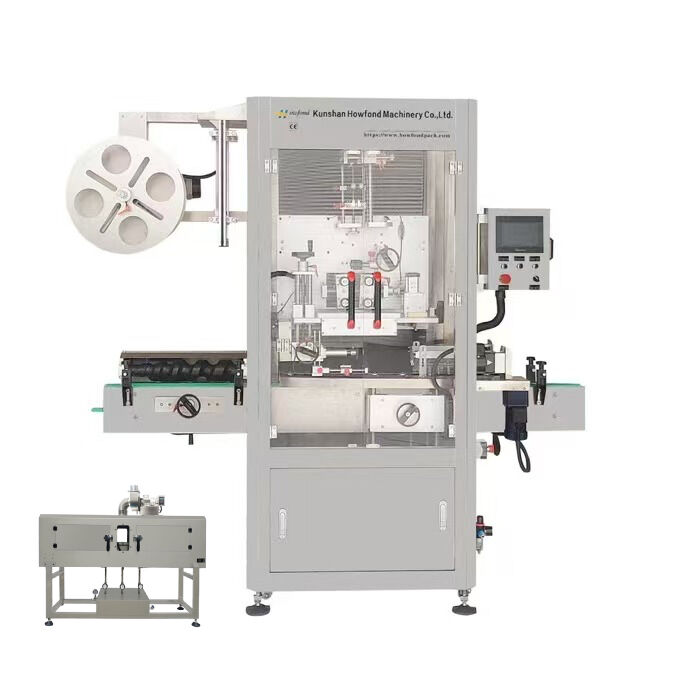

Introduction to Automatic Shrink Sleeve Label Applicator with Steam Shrink Tunnel
This Automatic Shrink Sleeve Label Applicator is designed for applying PVC shrink sleeve labels onto bottles and containers. The machine automatically cuts and places the sleeve label around the bottle. Then, the bottle passes through a steam shrink tunnel, where heat activates the label, making it shrink tightly and evenly around the container.
Automatic Shrink Sleeve Label Applicator PVC Label Key Features:
Fully automatic operation for high efficiency
Suitable for various bottle shapes (round, square, oval, etc.)
Uses PVC shrink sleeve labels
Steam shrink tunnel provides gentle and uniform shrinking
Ideal for beverage, food, cosmetic, and pharmaceutical bottles
Shrink Sleeve Labeling Machine with Steam Shrink Tunnel for Bottles details :
(1) The frame is made of 304 stainless steel.
(2) Servo system drives the machine.
(3) The applicable bottle on this machine can be around, square flat, curved cup-shaped
(4) Easy to change mandrels and bottles separating worms to suit different bottles.
(5) Unique cutter design, cut mark smoother, quick and easy blade replacement
(6) No bottles, no sleeve inserting.
(7) Mature program makes machines working steady.
(8) Innovative machine structure design ensures excellent durability and unmatched structural quality.
High Efficiency Multi Function Shrink Sleeve Labeling Machine for Production Line parameters :
|
Machine |
Machine model | HF-250M |
| Capacity | 250bpm (sleeve height 5~10cm) | |
| Size L*W*H | 2000*850*2000mm | |
| weight | 600Kgs | |
| Powder supply | AC3-Phase 220/380V | |
| Eligibility percent | ≥99.5% | |
| Total powder | 1.5KW | |
|
Shrinkable labels |
Materials | PVC,PET,OPS |
| Thickness | 0.03~0.13mm | |
| Labels height | 40~200mm | |
| Flat width | Max210mm | |
| Inner Dia. Of Labels roll | 76mm | |
|
Bottles to pack |
Height | Max320mm |
| Diameter | Ø28- Ø125mm | |
| Material | Glass,Metal ,Plastic | |
| Shapes | Round , square, flat , curved cup-shaped bottles |
