| Place of Origin: | china |
| Brand Name: | HOWFOND |
| Certification: | CE |
| Model Number: | HF-250M |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD11000 |
| Packaging Details: | export packing |
| Delivery Time: | 20-30days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 50 sets/month |
| Material: | 304 Stainless Steel | Speed: | 250 Bottles Per Minute |
|---|---|---|---|
| Label Height: | 40-200mm | Certificate: | CE |
| OEM: | OK | Delivery Time: | 25 Days |
| Packing: | Export Packing | Color: | Colour Of Steel |
| Program Words: | English | Eligibility Pecent: | ≥99.5% |
| Bottle Type: | Round /square /slat/other Shape | Bottle Height: | Max320mm |
| Label Materials: | PET/ PVC/ PE/ OPS/PE | Label Thickness: | 0.03-0.13mm |

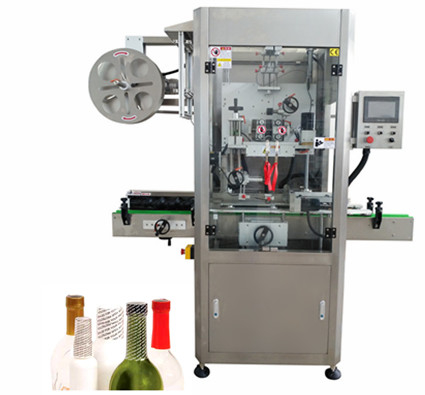

tamper evident shrink sleeves machines Brief Introduction
Tamper evident shrink sleeves machines cuts sleeves piece by piece and insert the sleeves to bottles cap and neck , and then shrink the sleeves labels by electrical heating gun to cap and neck tightly .
HF-250M is single head and single driving machine, the max speed 250bottles per minute (by sleeve height 5~10cm) are common used, meet most user’s requirement.
(1) The frame is made of 304 stainless steel.
(2) Servo system drives the machine.
(3) The applicable bottle on this machine can be around, square flat, curved cup-shaped

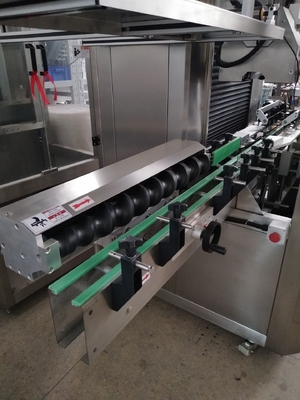

(4) Easy to change mandrels and bottles separating worms to suit different bottles.
(5) Unique cutter design, cut mark smoother, quick and easy blade replacement
(6) No bottles, no sleeve inserting.
(7) Mature program makes machines working steady.
(8) Innovative machine structure design ensures excellent durability and unmatched structural quality.
tamper evident shrink sleeves machines parameters
|
Machine |
Machine model | HF-250M |
| Capacity | 250bpm (sleeve height 5~10cm) | |
| Size L*W*H | 2000*850*2000mm | |
| weight | 600Kgs | |
| Powder supply | AC3-Phase 220/380V | |
| Eligibility percent | ≥99.5% | |
| Total powder | 1.5KW | |
|
Shrinkable labels |
Materials | PVC,PET,OPS |
| Thickness | 0.03~0.13mm | |
| Labels height | 40~200mm | |
| Flat width | Max210mm | |
| Inner Dia. Of Labels roll | 76mm | |
|
Bottles to pack |
Height | Max320mm |
| Diameter | Ø28- Ø125mm | |
| Material | Glass,Metal ,Plastic | |
| Shapes | Round , square, flat , curved cup-shaped bottles |
Electrical shrink tunnel for caps/necks
Small volume than common electrical shrink tunnels
Easy to adjust height to suit different bottles
Small power consumption, high efficiency for bottles /caps sleeve sealing
safety protection
simple application
packing :
