| Place of Origin: | China |
| Brand Name: | howfond |
| Certification: | CE |
| Model Number: | SFL100 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD3000-USD3500/set FOBshanghai |
| Packaging Details: | export wooden case |
| Delivery Time: | 5-10 days |
| Payment Terms: | Western Union, L/C, T/T |
| Yield Capacity: | 60-80 | Standard Label Speed: | 3-50meters/min |
|---|---|---|---|
| Label Roll Diameter: | 76mm | Printer To Use Air: | 5kg/cm2 |
| Voltage: | AC220V ,50/60HZ |
Sticker Labeling Machine Technical parameter:
| Model No. | SFL100 |
| Yield Capacity(bottles/min) | 60-80(the speed can be adjustable) |
| Standard label speed(m/min) | 3-50meters/min |
| Applicable label specifications | Glassine paper, transparent or opaque |
| Dimension(mm) | 2000(L)×1000(W)×1360(H)mm |
| Label roll diameter(mm) | 76mm |
| Outside diameter of label roll(mm) | 300mm |
| Printer to use Air | 5kg/cm2 |
| Power(w) | 1.0KW |
| Voltage | AC220V ,50/60HZ |
| Labeling accuracy | 0.5mm to 1mm |
| Gross weight | 350KG |

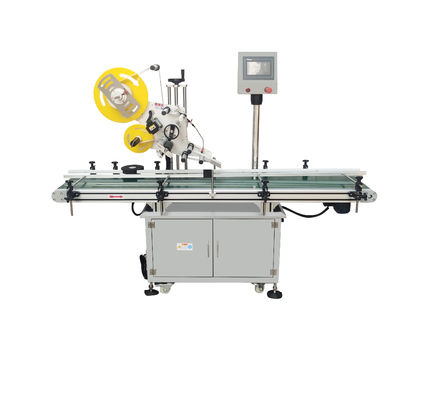

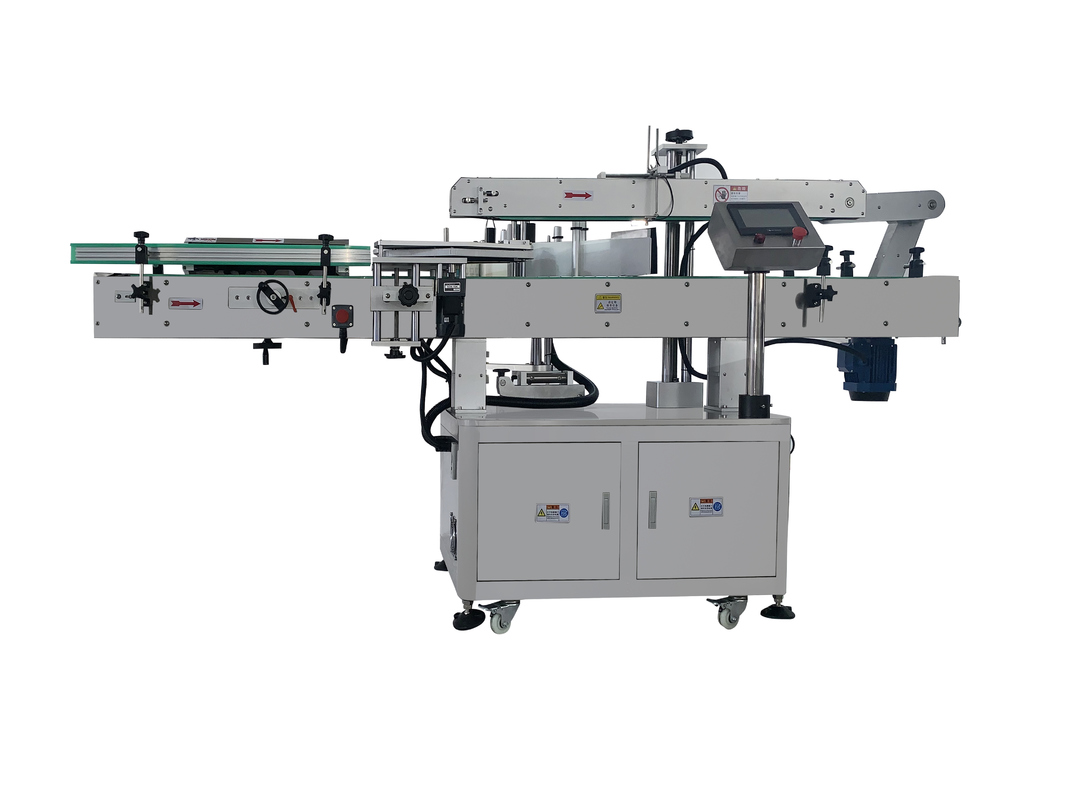

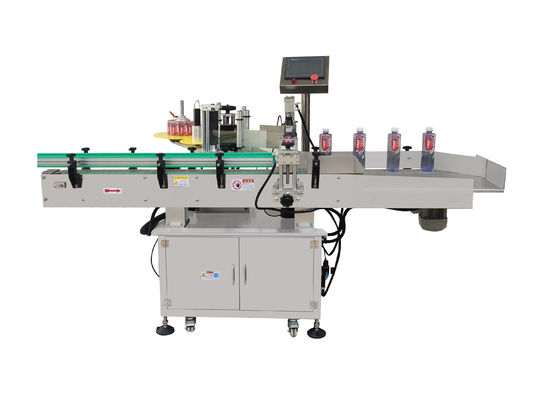

Sticker Labeling Machine Photos:
Details for Sticker Labeling Machine :
Sticker Labeling Machine Configuration:
| Name | Brand of Original |
| PLC | Siemens Germany |
| Touch screen | Siemens Germany |
| Communication cable 1 | Leuze Germany |
| Labeling sensor | Leuze Germany |
| Sensor for object | Banner USA |
| Motor | Yaskawa from Taiwan |
| Dc power supply | Shanghai |
| transformer | Shanghai |
| Power Switch | Schneider |
| Resistance | Schneider |
| Miniature circuit breaker | Schneider |
| Intermediate relay | Schneider |
| Relay Base | Schneider |
| Conveyor Motor | ZAGA |
| Labeling Tape Motor | ZAGA |
kunshan Howfond Machinery Co.,Ltd.
