| Material: | Ss304 | Packaging Film Width: | ≤600mm |
|---|---|---|---|
| Maximum Power Consumption: | 38KW | Shrinkage Temperature: | 160-220℃ |
| Shrinkage Time: | 0-6S |

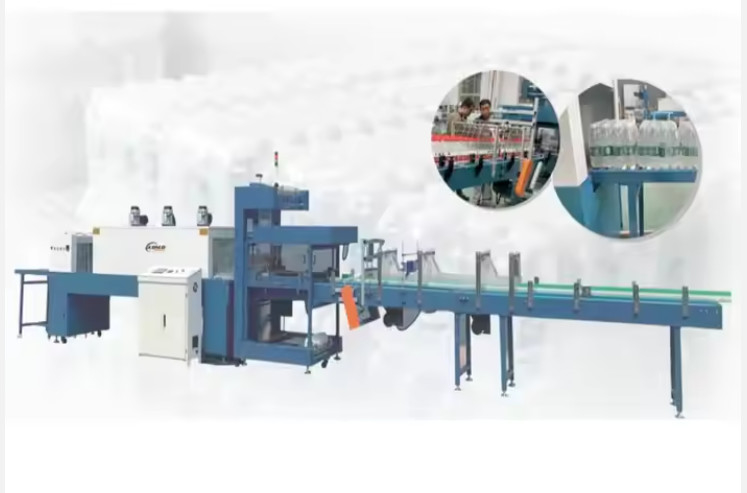

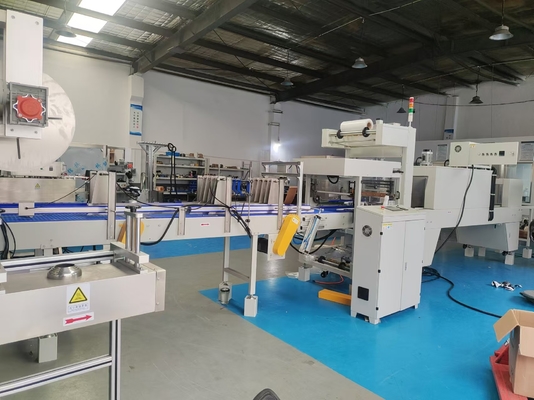

PE Film Shrink Wrapping Machine have the following parts:

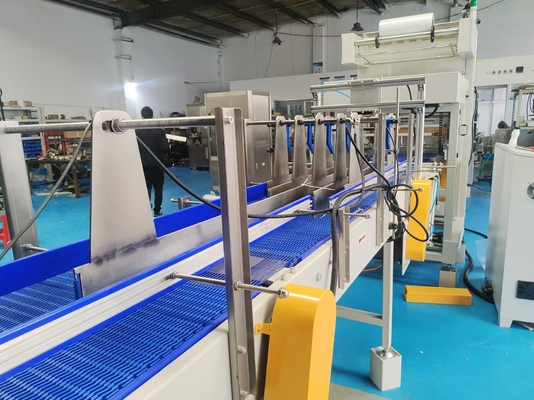

1.conveying plant : the transport of the goods to be packaged
2.Separate device: Channel transport and control the travel of packaging
3.Push device: push items to the cutting station
4.Upper and lower Film delivery device: transport packaging membrane
5.Seal the main body: seal the thin film to achieve the mantle film

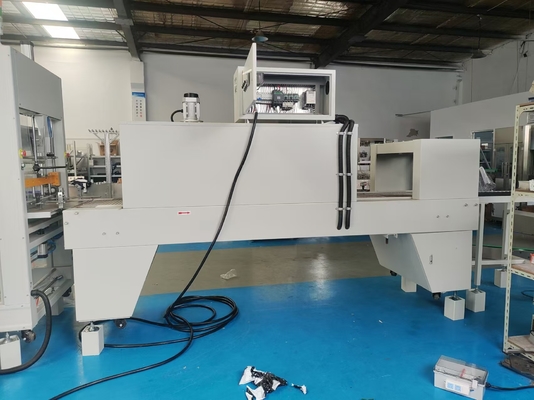

6.Hot air circulation device: to complete the thermal contraction function
7.High temperature resistant conveying device: smoothly conveying finished product at high temperature
8.Bearing shelf: finished products short-time store
9.Cooling device: cool the finished product, easy to transfer the product to the required position without breaking the package, not loose package
10.Fault alarm device: prompt the operator to remove the fault in time
11.The PLC program control system: automatic control

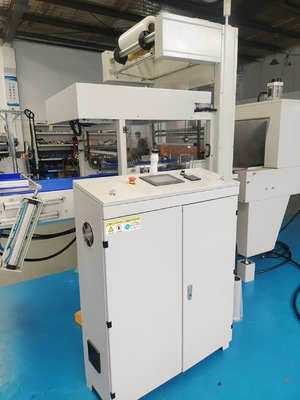

12.Main electric control box: the control of the centralized control machine
operational principle for PE Film Heat Tunnel Sleeve Wrap Shrink Machine:
HF-L500 Shrink Film Wrapping Heat Shrink Packaging Sealer Machine is based on the characteristics of packaging film heat shrinkage, using the photoelectric switch sensor online detection, collect signal by the PLC (programmable controller) centralized control processing, using conveyor belt continuous into the bottle, bottle, bottle, continuous push bottle film, heating knife cut into bags, heating channel contraction cold air cooling and shaping mechanism to complete the whole process
Main electrical accessories for PE Film Shrink Wrapping Machine
1.Choose generic famous brand components, unified specifications, can be randomly exchanged
2.The PLC programmable control system is adopted to ensure the accuracy and stability of the packaging process control
3.The shrinkage machine adopts Sino-German joint venture Beibei motor, and the conveying speed variable frequency can be adjusted to achieve good packaging effect
4.Touch screen control, so that the equipment action control into a high-precision intelligent state. All actions are monitored, all kinds of alarms, PC status are displayed on the touch screen, make the equipment operation more safe and reliable, can be single step action, easy debugging and maintenance. The equipment is equipped with an automatic alarm device to further improve the safety and reliability of the equipment
5.The pneumatic components use the yadeke brand
parameters for PE Film Shrink Wrapping Machine:
| electric source | AC 380V/50HZ |
| Maximum power consumption | 38KW |
| air pressure | 0.6Mpa |
| Supporting air compressor requirements | discharge pressure:0.8Mpa flow:0.25m3/min |
| Thermal contraction film | PE |
| Packaging film width | ≤600mm |
| Packaging film thickness | 0.03~0.15mm |
| Feed conveyor height | 950±50mm |
| Feed conveyor length | 2750mm |
| Maximum packaging size | 450×450×320(height)mm |
| Heat seal knife length | 630mm |
| shrinkage temperature | 160-220℃ |
| shrinkage time | 0-6S |
| Thermal sealing and cutting temperature | 150-180℃ |
| Maximum production speed | 10-16 pack / min (depending on actual bottle) |
| The number of bottles per bottle is commonly used | According to the customer requirements (round or square) |
| equipment size | 10500×1080×1980(mm) |
| Total weight of equipment | 2500kg |
Electrical list for PE Film Shrink Wrapping Machine
| No. | code name | specifications | brand | name of material |
| 1 | XC3-42T-E | XINJIE | PLC | |
| 2 | TH765 | XINJIE | touch screen | |
| 3 | The cable between the PLC to the touch screen | cable | ||
| 4 | Q0 | DZ47LE-25 3P+N (25A) | Chint | Leakage air switch |
| 5 | Q1~Q5 | DZ47-63 C10 1P | Chint | air switch |
| 6 | KA1~KA11 | MY2N-J | Schneider | auxiliary relay |
| 7 | V1 | HS-350-24 | Ming wei | direct-current electric source |
| 8 | U1-U2 U4 | ATV12H075M2 | Schneider | frequency transformer |
| 9 | U3 | ATV12H040M2 | Schneider | frequency transformer |
| 10 | SSR | SAP 4020D | Gute | solid state relay |
| 11 | BC1~BC4 | AirTAC | magnetic switch | |
| 12 | BG1~BG5 | BR100-DDT | Otto Nix | photoelectric switch |
| 13 | BJ1~BJ2 | PR12-4DN | Otto Nix | photoelectric switch |
| 14 | BD1~BD3 | ZT-1200N(1106H) | SICK | On the radio switch |
| 15 | BD4 | ZR-350N | SICK | Mirror-to-shoot |
| 16 | YA1~YA5 | DC24V | AirTAC | electromagnetic valve |
we can provide the whole line from filling machine +capping machine + sleeve labeling machine +heat tunnel +air blowing dryer +capping machine + sleeve labeling machine +heat tunnel +air blowing dryer + PE Film Shrink Wrapping Machine
welcome to send us inquiry about PE Film Shrink Wrapping Machine
