| Place of Origin: | china |
| Brand Name: | HOWFOND |
| Certification: | CE |
| Model Number: | HF-X60 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD10500 |
| Packaging Details: | wooden case |
| Delivery Time: | 15-25 days |
| Supply Ability: | 10 set/month |
| Packaging Material: | Plastic, Glass | Filling Material: | Oil, Water, Viscous Liquid |
|---|---|---|---|
| Filling Accuracy: | +/- 1% | Frame Material: | SS304 |
| Size: | 2x1.1x2.1m | Weight: | 350kg |
| Colour: | Stainless Steel | Certification: | CE |
1. nasal spray plastic bottle filling machine BRIEF INTRODUCTION
This nasal spray plastic bottle filling machine for Viscous and Non-viscous Liquids is composed of PLC, touch screen, photosensor, stainless steel frame etc.; It is designed based on piston filling theory; integrated design and advanced automatic control to ensure high accuracy liquid filling.
2.nasal spray plastic bottle filling machine features
nasal spray plastic bottle filling machine withHigh filling accuracy with widely filling range
Compact design save installation space
Special designed location control system to avoid photosensor count wrong
Special designed Lead screw to ensure rise and down steadily
Bottle clamp to lock bottle neck to ensure bottle no movement when filling
Automatic infeed liquid, no need manual intervention
Touch screen operation system, easy to operate and modify parameters
Clean and repair convenient and maintenance costs is low
Optional Automatic self-clean function make clean very simple

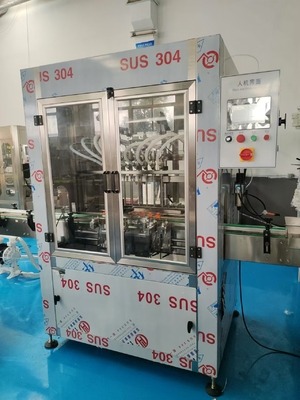

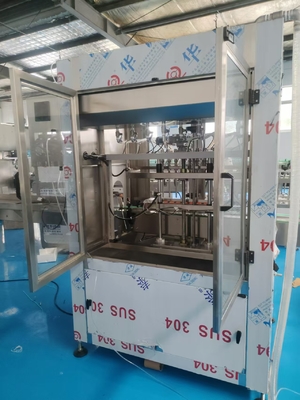

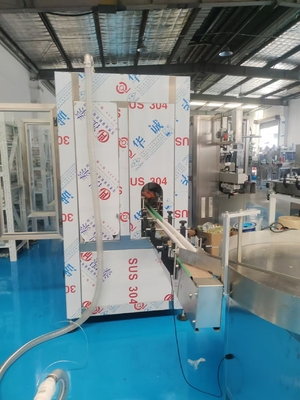

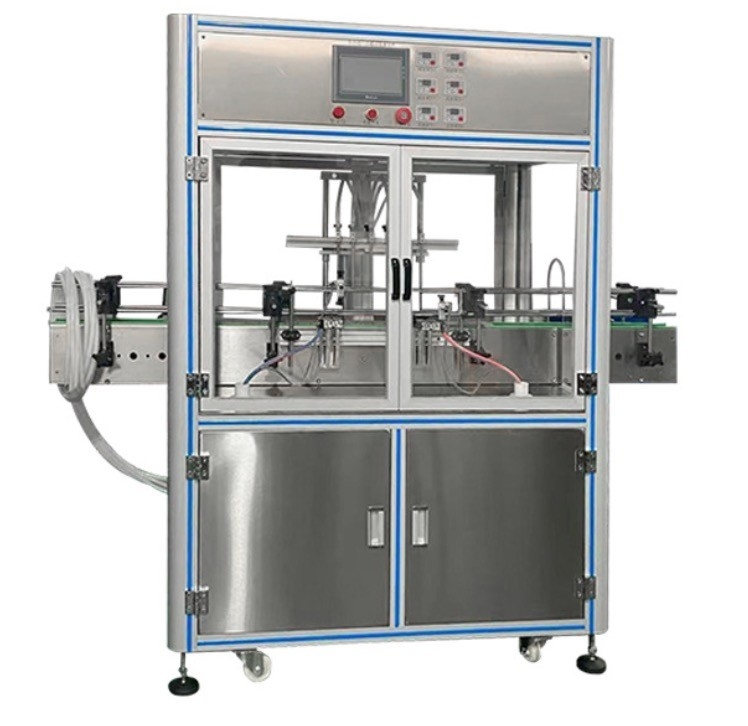

more images for nasal spray plastic bottle filling machine
nasal spray plastic bottle filling machine Parameters :
| material | 304 stainless steel |
| Pump Type | Piston PUMP |
| Filling Range | 30-1000ml |
| Filling Accuracy |
+/- 1% |
| Nozzle Quantity | 8pcs |
| Nozzle Diameter | 16mm |
| capacity | 60bottles/min |
| power supply | AC380V;50Hz; 3Phases |
| Air source | 0.5-0.8Mpa |
| Conveyor Height | 900±50mm |
We provide the whole line : nasal spray plastic bottle filling machine + capping machine +labeling machine +turntable +shrink wrapping machine
welcome to send us inquiry about nasal spray plastic bottle filling machine.
