| Place of Origin: | china |
| Brand Name: | Howfond |
| Certification: | CE |
| Model Number: | HF-1500M |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD2300 |
| Packaging Details: | export wooden case |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 500 sets per month |
| Features: | Automatic Temperature Control, Adjustable Conveyor Speed, Easy To Operate | Material: | Stainless Steel |
|---|---|---|---|
| Length: | 1500mm | Blower Powder: | Ø12, 0.25KW |
| Powder Supply Of Blower: | 220V 3P 60Hz Or 220V 1P 50Hz | Entrance /exit Height: | Max 350mm |
| Running Pressure: | Max 0.6Mpa | Weight: | 220kg |
| Cerificate: | CE SGS | Packaging Type: | Bottles/cans |
| Mateial: | SS Steel 304 | Power: | 9KW |
| Size: | 600x600x1280 | Conveyor Belt Width: | 300mm |
| Label Material: | PET PVC OPS | Steam Pipe Material: | SS316 |
| Tunnel Size: | L1500*W300*H300mm | Port: | Shanghai |
| Power Supply: | 220V/380V | Driven Type: | Pneumatic |

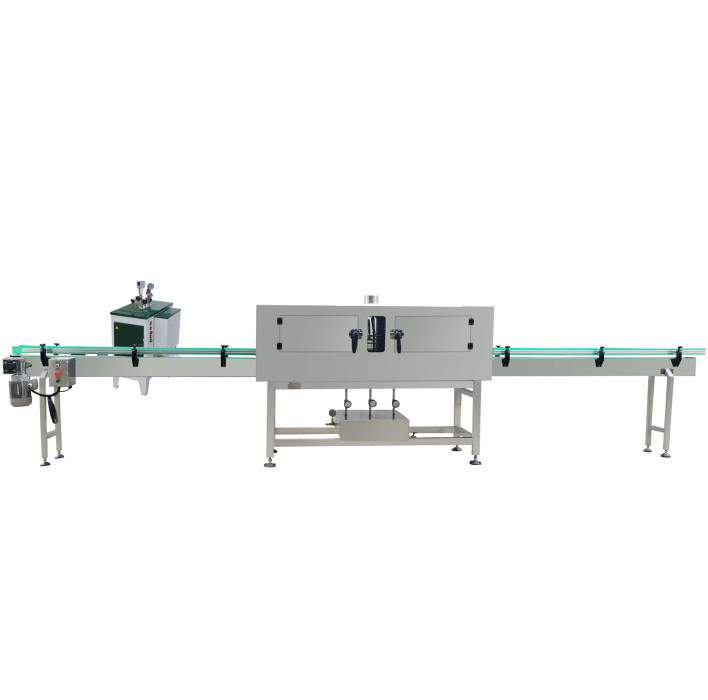

1. Automatic Steam Shrink Tunnel for PET Bottles Brief Introduction :
This automatic steam shrink tunnel is specially designed for PET bottles and plastic containers. It adopts stable steam heating system to ensure perfect shrink effect for labels and sleeves. Made of food grade 304 stainless steel, with adjustable conveyor speed and temperature control, easy operation and maintenance. Suitable for small and medium beverage packaging lines.
2.Advantage of Howfond’s steam shrink tunnel for oil bottles :
1)The blower motor's holder is made of SS304 stainless steel.
2)The elbow which connects blower motor is made of SS304 stainless steel.
3)The whole of frame and doors are made SS304 stainless steel.
4)The steam spray tubes are made of SS304 stainless steel.
5)The steam transmission tubes are made of SS304 stainless steel.
6)The leafage inside of blower is also made of SS304 stainless steel.
7)Round steam jet pipes save 30% steam at least.
8)Passivating treatment to steam jet pipes, working life at least 5years
3.steam shrink tunnel for juice bottles Parameters
| Item Models | HF-1200M | HF-1500M | HF-2000M | HF-2300M |
| Length of tunnel | 1.2meters | 1.5meters | 2.0meters | 2.3meters |
| Blower powder | Ø12, 0.25KW | Ø12, 0.25KW | Ø12, 0.25KW | Ø12, 0.25KW |
| Powder supply of blower | 220V 3P 60Hz or 220V 1P 50Hz | |||
| Entrance /exit height | Max 350mm | |||
| Entrance /exit width | 130~210mm (fixed size once confirmed) | |||
| Running pressure | Max 0.6Mpa | Max 0.6Mpa | Max 0.6Mpa | Max 0.6Mpa |
| Weight | 180kg | 200Kg | 220kg | 230kg |
| Steam consumption | 18kg/h | 21kg/h | 24kg/h | 24kg/h |
| Conveyor speed | 0~35m/minute | 0~35m/minute | 0~35m/minute | 0~35m/minute |
| Outline size (m) | L1.2*W0.4*H1.5 | L1.5*W0.4*H1.5 | L2.0*W0.4*H1.5 | L2.3*W0.4*H1.5 |
