| Place of Origin: | china |
| Brand Name: | HF |
| Certification: | CE |
| Model Number: | HF-L800 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD1900/set FOBshanghai |
| Packaging Details: | export wooden case |
| Delivery Time: | 10-15 days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 50 sets /month |
| Input Power: | 0.4KW | Speed: | 150BPM |
|---|---|---|---|
| Material: | SS304 | Iinput Voltage: | 380/220V AC |
| Diameter Of Turning Table: | 800mm | Weight: | 180KG |

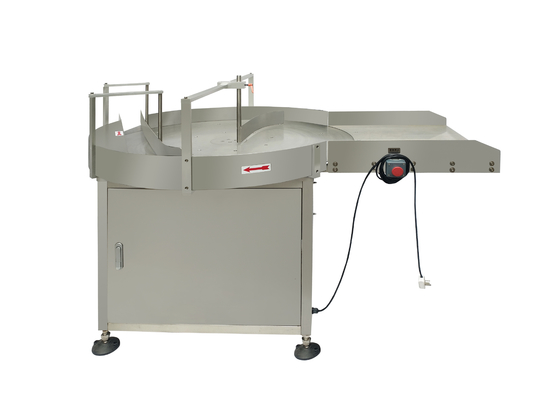

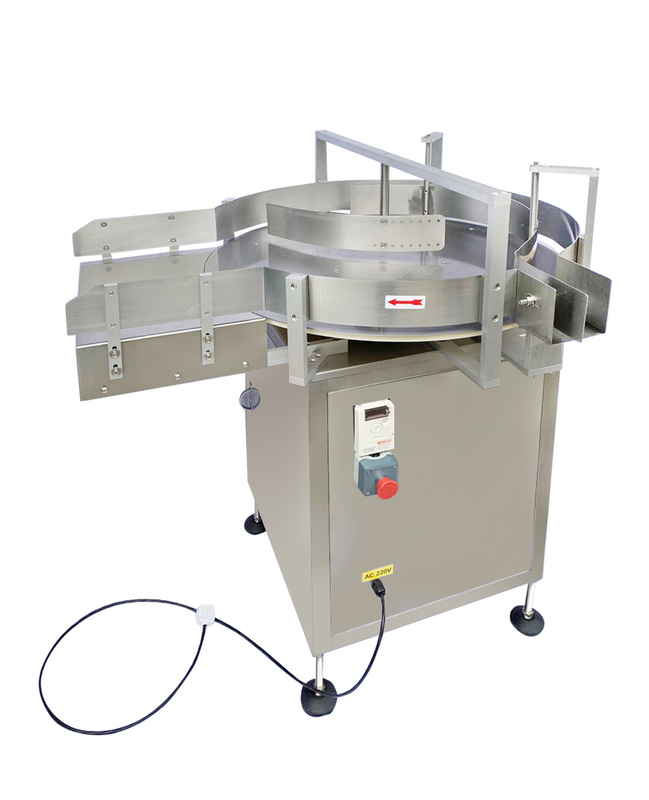

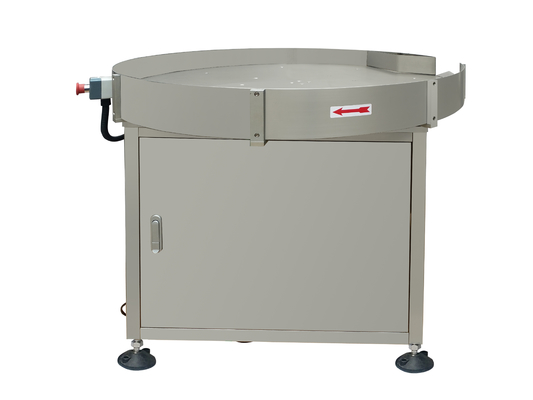

1.Accumulating Turntables Features :
botter sorter is an auxiliary device in the production line. It is mainly used for storage, finishing and feeding of glass bottles to the production process.
Performance characteristics:
• Made of cast aluminum and stainless steel, the performance mechanism is stable and reliable!
• Match production line host speed!
• The main disc diameter can be confirmed at the time of ordering
The sorter for bottle collection is a little different to that at the beginning at conveyor
2.parameters:
Turntable diameter: 0.8~1.2m (up to requirement)
Total power: 0.4kw
Running speed: adjustable
Steel material: ss304 steel
| Model | L-800 | L-900 | L-1000 | L-1100 |
| diameter of turning table | 800(mm) | 900(mm) | 1000(mm) | 1100(mm) |
| capacity (cans/min) | 20-40 | 30-60 | 40-80 | 60-120 |
| overall dimension (mm) | 1200*800*1094 | 1150*900*1094 | 1230*1000*1160 | 1350*1140*1160 |
3.packing for Accumulation & Sorting Turntable
contact information :
kunshan Howfond Machinery Co.,Ltd.
