| Place of Origin: | CHINA |
| Brand Name: | HF |
| Certification: | CE |
| Model Number: | HF-2000MH |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD2500/set FOBshanghai |
| Packaging Details: | export wooden case |
| Delivery Time: | 10-15 days |
| Supply Ability: | 50 sets/month |
| Length Of Tunnel: | 2m | Total Powder: | 12.5kw |
|---|---|---|---|
| Sleeves Shrink Films: | PVC, PET Or OPS | Heating Units: | 12pcs |
| Adjusted Temperature: | Max320℃ | Weight: | 150kgs |
| Size: | L2000*W600*H1100 Mm |

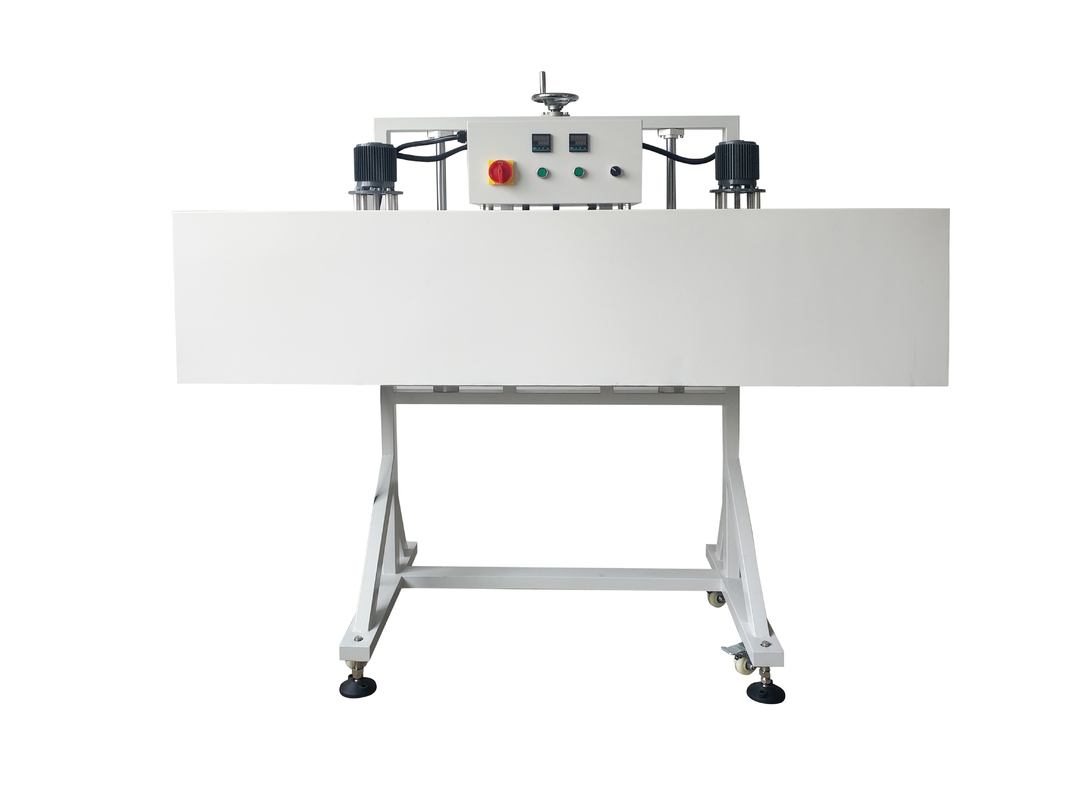

1. electric shrink tunnel Brief Introduction
Electric shrink tunnel is used for shrinking sleeve labels of small bottles’ body or sealing bottles’ caps/necks.
The sleeves shrink films can be PVC, PET or OPS. by electrical
2. Advantage of Howfond’s 2000MH electric shrink tunnel
(1)Simple structure, good looking appearance.
(2)Adjusted height to match conveyor, easy installing.
(3)Easy moving without disassembly.

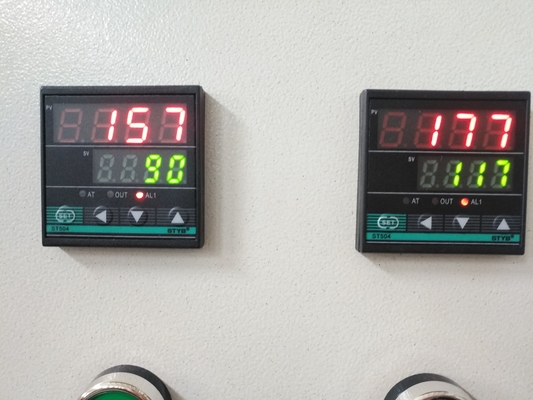

(4)Adjusted Temperature , Max320℃

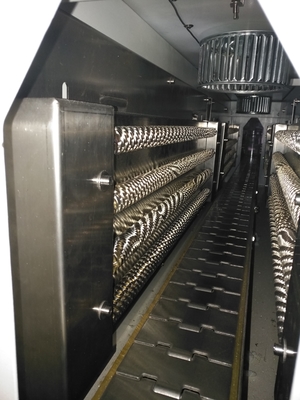

(5)Special heating pipes, Long service life..
(6) Intermittence heating, energy – saving.
(7)Safety protection.
3.electric shrink tunnel parameters
| Item Models | HF-2000MH |
| Length of tunnel | 2.0 meters |
| Powder supply of blower | 220v 3P 50/60hz |
| Total Powder | 12.5kw |
| Heating units | 12Pieces |
| Entrance /exit height | 300mm |
| Entrance /exit width | 120mm |
| Net Weight | 150Kgs |
| Outline size (LWH ,mm) | 2000*500*(1400~1900) |
4.electric shrink tunnel packing :
kunshan Howfond Machinery Co.,Ltd.
