| Place of Origin: | shanghai |
| Brand Name: | YN |
| Certification: | CE |
| Model Number: | YN24-0.7-D |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | USD1500-2000/SET |
| Packaging Details: | export wooden case |
| Delivery Time: | 3 days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 100 sets /month |
| Electric Power: | 27KW | Rated Pressure: | 0.7 M Pa |
|---|---|---|---|
| Rated Evaporation: | 34.4 Kg/h | Steam Temperature: | 170℃ |
| Voltage: | 380V 3P 50HZ | Water Inlet Caliber: | DN15 |

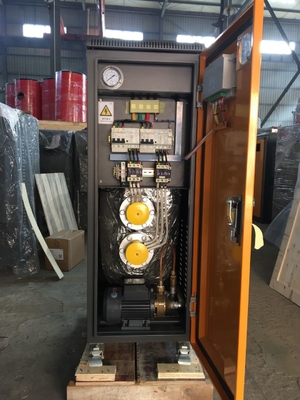

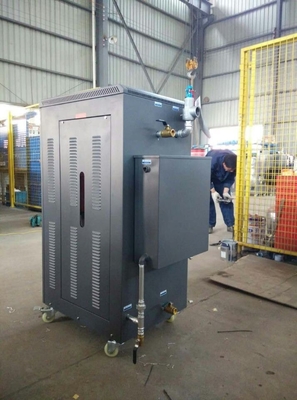

24KW Electric Steam Boiler (Parameter)
1.Type: YN-0.7-D
2.Electric power: 27KW
3.Rated pressure:0.7 M pa(7kg, 7bar)
4.Rated evaporation:34.4 kg/h
5.Steam temperature:170℃
6.Voltage: 380V 3P 50HZ
7.Water inlet caliber: DN15
8.Steam caliber: DN15
9.Drain outlet caliber: DN15
10.power wire: 10mm2
11.Dimension:660*420*1230mm(L*W*H)mm
12.Weight: 120 KG
13. Heating tube: 2 groups
14. heating tube: 316L stainless steel
15.Produce steam within 10 minutes
16. Water tank: 304L stainless steel
17. With 4 movable wheels
18. LCD intelligent controller
Characteristics
1. Unique Internal Structure Design That Is Exempted from Applying for a Boiler Use Certificate
2. Use LCD Automatic Intelligent Electronic Control System
3. The Use of High-quality Core Components—Electric Heating Pipe
4. Use High-quality Components
5. Multiple Safety Interlock Protection
6.Putting Reasonable Electric Load into Use Could Save Energy and Extend Life
Cycle
El 7.Extremely Easy to Install and Use
B 8. Scientific Design and Attractive Appearance
9. 9.Use Electricity Is More Environmentally Friendly and More Economical
1 1 0.Heating Tube is Made of Quality 316L Stainless Steel
PACKING DETAILS
WELCOME TO CONTACT US
kunshan Howfond Machinery Co.,Ltd.
