| Place of Origin: | china |
| Brand Name: | HOWFOND |
| Certification: | CE |
| Model Number: | HF-250M |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD12000 |
| Packaging Details: | export packing wooden case with plastic film and PET belts |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 50 sets/month |
| Material: | 304 Stainless Steel | Label Material: | PVC PET OPS |
|---|---|---|---|
| Speed: | 250 Bottles Per Minute | Sleeve Height: | 5-10cm |
| OEM: | OK | Delivery Time: | 25 Days |
| Packing: | Export Packing | Color: | Colour Of Steel |
| Program Words: | English | Label Thickness: | 0.03~0.13mm |
| Label Height: | 40~200mm | Bottle Shape: | Round , Square, Flat , Curved Cup-shaped Bottles |
1. Brief Introduction

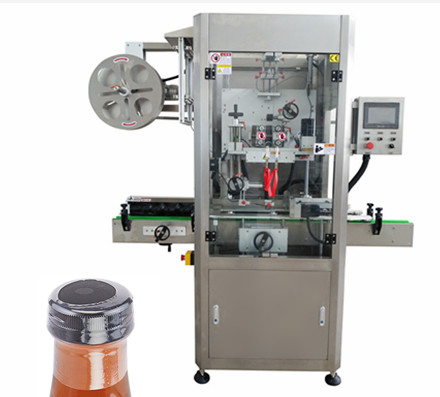

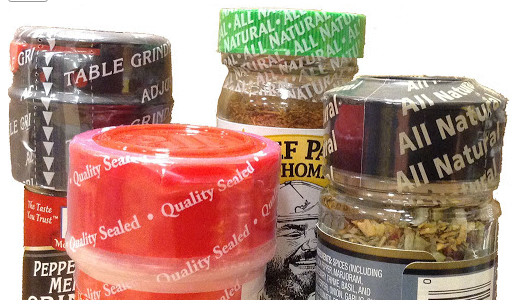

Bottle cap sleeve machine cuts sleeves piece by piece and insert the sleeves to bottles cap and neck ,
and then shrink the sleeves labels by electrical heating gun to cap and neck tightly .
HF-250M is single head and single driving machine, the max speed 250bottles per minute (by sleeve height 5~10cm) are common used,
meet most user’s requirement.
The sleeve labels can be PVC, PET or OPS material, but the shrink ratio of PET, OPS is much bigger than PVC material,
PVC sleeves labels are not degradative material, not good to environment protection. Instead, PET, OPS sleeves can be degradative.

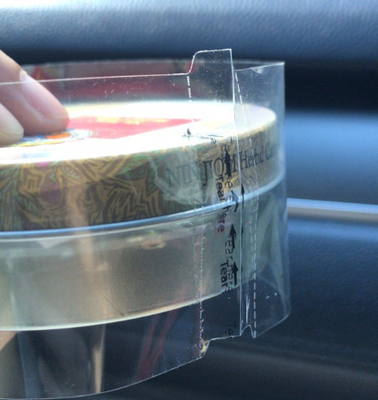

vertical easy perforation line can be added on the sleeve unit .
2.bottle cap Sleeve Bottle Labeling Machine parameters
|
Machine |
Machine model | HF-250M |
| Capacity | 250bpm (sleeve height 5~10cm) | |
| Size L*W*H | 2000*850*2000mm | |
| weight | 600Kgs | |
| Powder supply | AC3-Phase 220/380V | |
| Eligibility percent | ≥99.5% | |
| Total powder | 1.5KW | |
|
Shrinkable labels |
Materials | PVC,PET,OPS |
| Thickness | 0.03~0.13mm | |
| Labels height | 40~200mm | |
| Flat width | Max210mm | |
| Inner Dia. Of Labels roll | 76mm | |
|
Bottles to pack |
Height | Max320mm |
| Diameter | Ø28- Ø125mm | |
| Material | Glass,Metal ,Plastic | |
| Shapes | Round , square, flat , curved cup-shaped bottles |
3.Electrical shrink tunnel for caps/necks :
Small volume than common electrical shrink tunnels
Easy to adjust height to suit different bottles
Small power consumption, high efficiency for bottles /caps sleeve sealing
safety protection
simple application
4.packing details for the machine :
kunshan Howfond Machinery Co.,Ltd.
