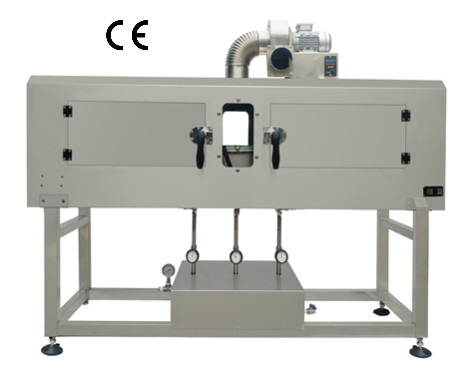

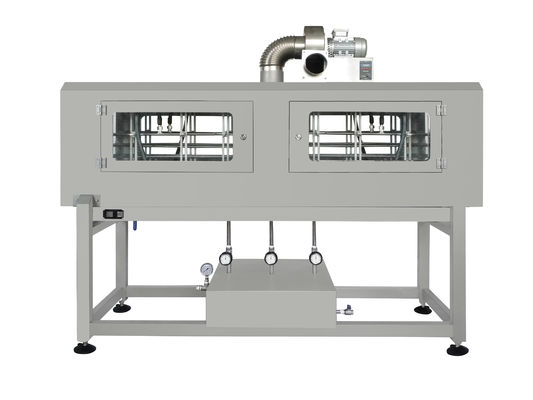

HF-1500M shrink label steam oven working with PVC, PETG and OPS films

shrink label steam oven

1. Brief Introduction

    Steam shrink tunnel is used for shrinking sleeve labels to label kinds of bottles: different and irregular round bottles, square bottles, flat bottles and women-shaped bottles. By shrinking PVC or PET sleeve labels to seal bottles caps /necks, cover bottles body even shrink wrap bottle bottom.

To get smooth shrink effect, we usually adjust the heights and positions of the 3 sections of steam spray tubes insides of tunnel. Bottles run on the conveyor, the shrink usually goes from down to top of bottles.

our steam pipes is SS316 are with Electrolytic polishing which will make the steam pipes not rust .

there is speed control on the blowing fan which can control the steam inside to make the shrinking better

the blowng fan and tunnel feet is both stainless steel

water tray under the conveyor to avoid the steam water fall on the flower .

we use round steam pipes with 0.5mm hole on it instead of square steam pipes , round steam pipes can save at least 30% steam and make better shrinking

2.Advantage of Howfond’s Steam shrink tunnel.

(1)Full body of tunnel is made of SS304 stainless steel.
(2)Inside of tunnel , flexible tubes are made of SS316,

(3)Round steam jet pipes save 30% steam at least.

(4)NO rusting because of Electropolishing for steam jet pipes and flexible tubes.

(5)Blower motor for steam exhausting is varied and adjustable.

(6)Needle valve,precise steam consumption controlling.

(7)SICION tube to ground for water out.

3. Parameters
