| Place of Origin: | china |
| Brand Name: | HOWFOND |
| Certification: | CE |
| Model Number: | HF-2000M |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD2300 |
| Packaging Details: | plastic film export wooden case |
| Delivery Time: | 10-15days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 30sets per month |
| Steam Pipe Material: | SS316 | Bottle Height: | 320mm |
|---|---|---|---|
| Bottle Dia: | 130-210MM | Bottle Material: | Glass/metal/plastic |
| Label Material: | PVC PET OPS ... | Tunnel Length: | 2m |
| Speed: | 0-35m/min | Total Power: | 0.25kw |
| Frame Material: | SS304 |
| Model | HF-1200M | HF-1500M | HF-2000M | HF-2300M |
| tunnel length | 1.2m | 1.5m | 2.0m | 2.3m |
| weight | 180kgs | 200kgs | 220kgs | 230kgs |
| power | 0.25kw | |||
| power supply | 220V 3P 60Hz or 220V 1P 50Hz | |||
| entrance /exit height | 320mm | |||
| entrance/exit width | 130-210mm | |||
| steam consumption | 18kg/h | 21kg/h | 24kg/h | 24kg/h |
| running prussure | 0.6mpa | |||
| conveyor speed | 0-35m/min | |||

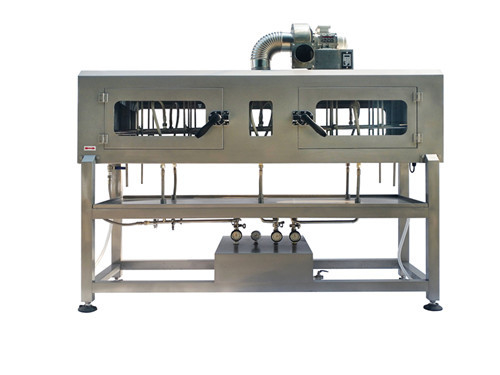

Steam shrink tunnel details :
controller on blowing fan
conveyor with motor and cabinet
SS316 round steam pipes with small holes
tube to guide the water on the floor
Packing details :
| packing size | 2.1*0.65*1.6m |
| gross weight | 250kgs |
| packing details | plastic film PET belt export wooden case |
Welcome to vist our factory
Our factory is located in shanghai China, which is very near to shanghai seaport and international airport
We have partner in USA SPAIN SOUTH AFRICA INDIA ...
Hope we can be your most trustworthy supplier in China
