| Place of Origin: | CHINA |
| Brand Name: | HF |
| Certification: | CE |
| Model Number: | HF-2000M |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD2300 |
| Packaging Details: | plastic film PET belt export wooden case |
| Delivery Time: | 10-15days since got payment |
| Payment Terms: | Western Union , T/T, L/C |
| Supply Ability: | 30set /month |
| Material: | SS316/SS304 | Length: | 2000mm |
|---|---|---|---|
| Bottle Height: | 320mm | Bottle Dia: | 210mm |
| Label Material: | PET PVC OPS | Speed: | 0-35m/min |
| Steam Consumption: | 24kg/hour | Power: | 0.25kw |
| Running Pressure: | 0.6mpa |
Induction :
Kunshan Howfond Machinery Co., LTD is located in shanghai china , which is very near to shanghai seaport and 2 hour's driving to Pudong International airport .
Our Factory can provide a large range of heat shrink tunnel like : steam heat tunnel , electric heat tunnel , electric heat gun and so on .
Our engineer is good at English and can adjust the machine at buyer's factory alone .
We improved our steam heat shrink tunnels several times and make them better operation :
| Item Models | HF-1200M | HF-1500M | HF-2000M | HF-2300M |
| length | 1.2M | 1.5M | 2.0M | 2.3M |
| blower power | 0.25KW | |||
| power supply of motor | 220V 3P 60HZ 220V 1P 50HZ | |||
| entrance/exit height | MAX 350MM | |||
| entrance/exit width | 130-210mm | |||
| running pressure | 0.6mpa | |||
| weight | 180kg | 200kg | 220kg | 230kg |
| steam consumption | 18kg/h | 21kg/h | 24kg/h | 24kg/h |
| conveyor speed | 0-35m/min | |||
| tunnel size | 1.2*0.4*1.2m | 1.5*0.4*1.2m | 2.0*0.4*1.2m | 2.3*0.4*1.2m |

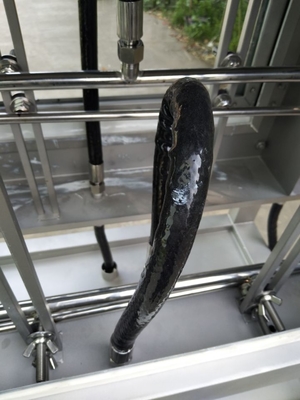

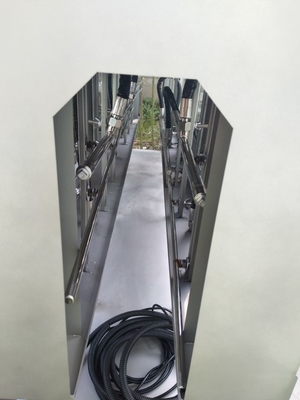

Tunnel details :
speed control on the blowing fan control the steam inside to make the shrink better
SS316 steam pipes with Electrolytic polishing make the steam pipes not rust
round steam pipes with 0.5mm hole instead of square steam pipes , save 30% steam and make better shrinking
Steam Heat Shrink Tunnels packing :
| size: | 2.1*1*1.65m | |
| gross weight | 300kg | |
| packing details | plastic film PET belt export wooden case with attention marks on the wooden case | |
welcome to visit our factory :
