| Place of Origin: | CHINA |
| Brand Name: | HOWFOND |
| Certification: | CE |
| Model Number: | HF-120M |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD10000 |
| Packaging Details: | export packing |
| Delivery Time: | 25-35 days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 50 sets per month |
| Power Supply: | 380V/480V±10％ 3P, 50/60HZ | Total Power: | 2KW |
|---|---|---|---|
| Weight: | 550KG | Capacity: | 50~100bpm（Normal 500ML） |
| Bottle: | Round Glass | Size: | 3000 W=850 H=750 Mm |

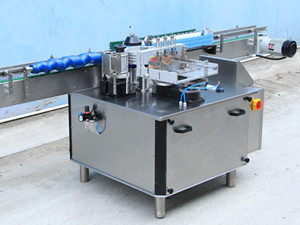

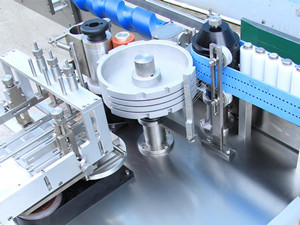

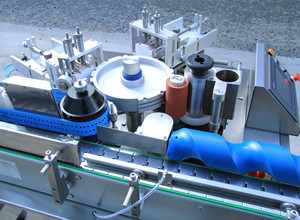

Automatic Cold Glue Sticker Glass Bottle Labeling Facility
Liquid glue labeling machine is also called cold glue labeling machine. The machines coat the liquid labels to paper labels’ back’, and paste the paper labels to glass or metal rounds bottles and jars.
This machine is widely used for the labeling of the round objects in such industries as food, medicine, daily chemical and so on. Mostly, the bottles are around and glass; the glue is water soluble resin glue.
This machine costs much less than others types labelers, it is competitive for some application, our inline cold glue labeling machine’s max speed is 120bpm.
2. Advantage of Automatic Cold Glue Sticker Glass Bottle Labeling Facility
(1) Unique Internal structure design
(2) Use touch screen control system
(3) The use of high-quality electrical components
(4) Economical labeling cost little.
(5) Reliable and steady machine.
(6) Max speed can reach 120bph
(8) Scientific design and attractive appearance
3. Automatic Cold Glue Sticker Glass Bottle Labeling Facility Parameters
| Name | Inline Cold Glue Labeling Machine |
| Model | HF-120M |
| Power supply | 380V/480V±10％ 3P, 50/60HZ |
| Total power | 2KW |
| Labeling type | Part of the round |
| Bottles | Glass , Round ∮30-105mm |
| Glue coating | Full coating on the back of labels |
| Label sizes | Length 35-300mm , height 30-98mm |
| Labels type | Paper, pieces in stock |
| Capacity | 50~100bpm(Normal 500ML) |
| Glue | Water soluble resin glue |
| Compressed air | 5.0bar, 4-6kgs×18liter/H consumption |
| Total weight | 550kg |
| Machine sizes | L=3000 W=850 H=750 mm |
