| Place of Origin: | china |
| Brand Name: | Howfond |
| Certification: | CE |
| Model Number: | HF-1500M |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD2300 |
| Packaging Details: | export wooden case with plastic film and PET belts |
| Delivery Time: | 7-10 days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 50 sets per month |
| Material: | Stainless Steel | Length: | 1500mm |
|---|---|---|---|
| Blower Powder: | Ø12, 0.25KW | Powder Supply Of Blower: | 220V 3P 60Hz Or 220V 1P 50Hz |
| Entrance /exit Height: | Max 350mm | Running Pressure: | Max 0.6Mpa |
| Weight: | 200kg | Entrance Width: | 130-210mm |
| Conveyor Speed: | 0-35m/minute | Power: | 0.25kw |
| Steam Consumption: | 24kg/hour |
Keywords :
dual zone steam tunnel, double zone steam shrink tunnel, thick sleeve steam tunnel, professional steam shrink machine, large bottle steam tunnel
Dual Zone Steam Shrink Tunnel for Shrink Sleeves introdcution :
This dual zone steam heat tunnel provides two-stage heating for better shrink effect. It is especially suitable for thick shrink sleeves, large bottles and irregular containers. Strong steel structure, long service life, widely used in professional packaging factories with high requirements.

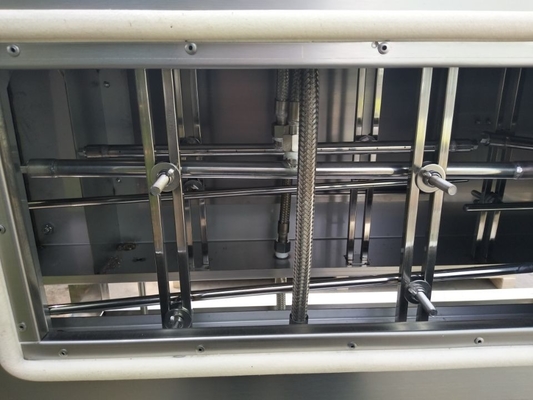

To get smooth shrink effect, we usually adjust the heights and positions of the 3 sections of steam spray tubes insides of tunnel.
Bottles run on the conveyor, the shrink usually goes from down to top of bottles.

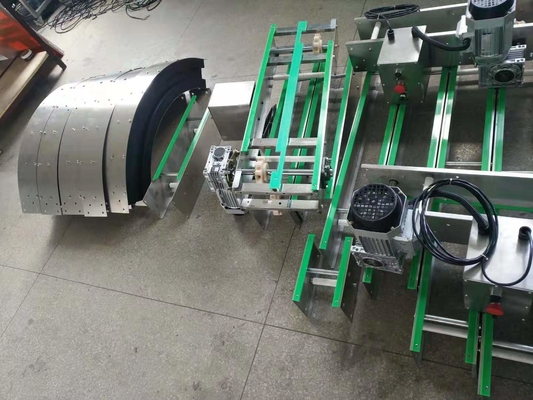

Conveyor , steam generator and air blowing dryer which used together with steam tunnel
2.Advantage of Howfond’s Steam shrink tunnel.
(1)Full body of tunnel is made of SS304 stainless steel.
(2)Inside of tunnel , flexible tubes are made of SS316,
(3)Round steam jet pipes save 30% steam at least.
(4)No rusting because of Electropolishing for steam jet pipes and flexible tubes.

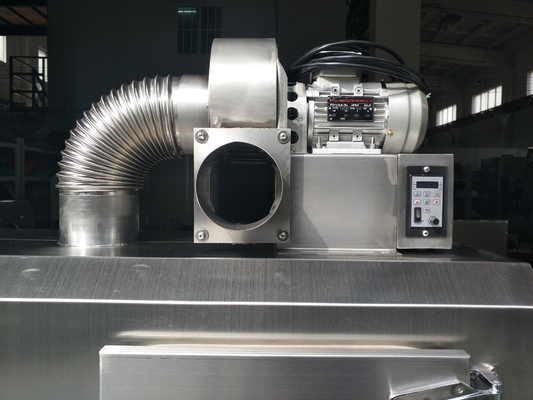

(5)Blower motor for steam exhausting is varied and adjustable.
(6)Needle valve,precise steam consumption controlling.
(7)SICION tube to ground for water out.
3. Parameters
| Item Models | HF-1200M | HF-1500M | HF-2000M | HF-2300M |
| Length of tunnel | 1.2meters | 1.5meters | 2.0meters | 2.3meters |
| Blower powder | Ø12, 0.25KW | Ø12, 0.25KW | Ø12, 0.25KW | Ø12, 0.25KW |
| Powder supply of blower | 220V 3P 60Hz or 220V 1P 50Hz | |||
| Entrance /exit height | Max 350mm | |||
| Entrance /exit width | 130~210mm (fixed size once confirmed) | |||
| Running pressure | Max 0.6Mpa | Max 0.6Mpa | Max 0.6Mpa | Max 0.6Mpa |
| Weight | 180kg | 200Kg | 220kg | 230kg |
| Steam consumption | 18kg/h | 21kg/h | 24kg/h | 24kg/h |
| Conveyor speed | 0~35m/minute | 0~35m/minute | 0~35m/minute | 0~35m/minute |
| Outline size (m) | L1.2*W0.4*H1.5 | L1.5*W0.4*H1.5 | L2.0*W0.4*H1.5 | L2.3*W0.4*H1.5 |
kunshan Howfond Machinery Co.,Ltd.
