| Place of Origin: | china |
| Brand Name: | HOWFOND |
| Certification: | CE |
| Model Number: | HF-2400M |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD11000 |
| Packaging Details: | export packing |
| Delivery Time: | 20-30days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 30 sets/month |
| Material: | 304 Stainless Steel | Label Material: | PVC PET OPS |
|---|---|---|---|
| Speed: | 400 Bottles Per Minute | Sleeve Height: | 5-10cm |
| Certificate: | CE | OEM: | OK |
| Delivery Time: | 25 Days | Packing: | Export Packing |
| Color: | Grey | Program Words: | English |

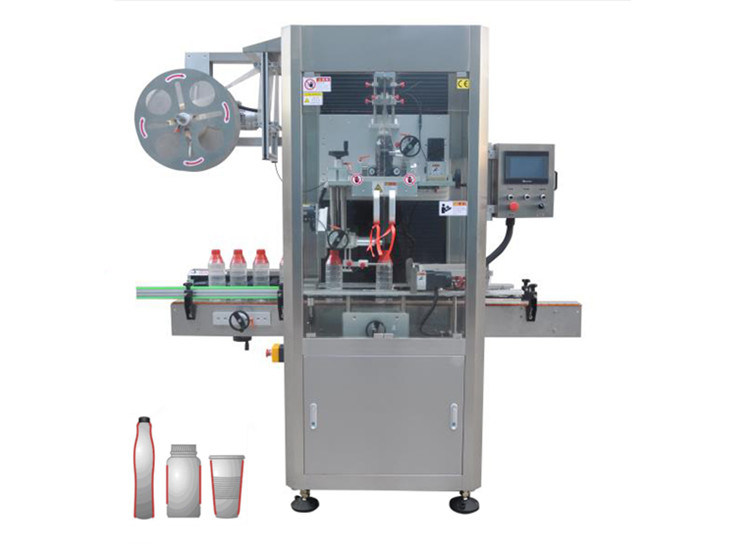

Full-body shrink sleeve applicator for 600bpm production Brief Introduction :
Shrink sleeve applicator, also called sleeves labels applicator or sleeves labels inserting machine , which cut sleeves piece by piece and insert the sleeves to bottles , and then shrink the sleeves labels by steam shrinking tunnel or electrical heating tunnel to bottles tightly . The sleeves can label bottles’ body or seal bottles’ caps and necks.
The sleeve labels can be PVC, PET or OPS material, but the shrink ratio of PET, OPS is much bigger than PVC material, PVC sleeves labels are not degradative material, not good to environment protection. Instead, PET, OPS sleeves can be degradative.
Advantage of Full-body shrink sleeve applicator for 600bpm production :
(1) The frame is made of 304 stainless steel.
(2) Servo system drives the machine.
(3) The applicable bottle on this machine can be around, square flat, curved cup-shaped
(4) Easy to change mandrels and bottles separating worms to suit different bottles.
(5) Unique cutter design, cut mark smoother, quick and easy blade replacement
(6) No bottles, no sleeve inserting.
(7) Mature program makes machines working steady.
(8) Innovative machine structure design ensures excellent durability and unmatched structural quality.
Full-body shrink sleeve applicator for 600bpm production parameters :
Machine | Machine model | HF-250M |
| Capacity | 250bpm (sleeve height 5~10cm) | |
| Size L*W*H | 2000*850*2000mm | |
| weight | 600Kgs | |
| Powder supply | AC3-Phase 220/380V | |
| Eligibility percent | ≥99.5% | |
| Total powder | 1.5KW | |
Shrinkable labels | Materials | PVC,PET,OPS |
| Thickness | 0.03~0.13mm | |
| Labels height | 40~200mm | |
| Flat width | Max210mm | |
| Inner Dia. Of Labels roll | 76mm | |
Bottles to pack | Height | Max320mm |
| Diameter | Ø28- Ø125mm | |
| Material | Glass,Metal ,Plastic | |
| Shapes | Round , square, flat , curved cup-shaped bottles |
